0600-T Series

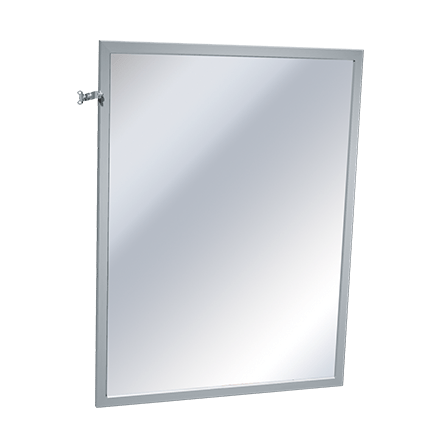

Adjustable Tilt Inter-Lok Plate Glass Mirror, Variable Sizes


Designed to provide easy visibility for wheelchair patients or return to upright position. Angle frame fabricated of 18 gauge stainless steel with corners welded and ground smooth. Tilts a full 6″ (152 mm) with bottom mounted on full width stainless steel piano hinge.

Variable sizes available, choose appropriate suffix:

  • 0600-T1624 – 16” wide x 24” high (406 x 610 mm)
  • 0600-T1630 – 16” wide x 30” high (406 x 762 mm)
  • 0600-T1824 – 18” wide x 24” high (457 x 610 mm)
  • 0600-T1830 – 18” wide x 30” high (457 x 762 mm)
  • 0600-T1836 – 18” wide x 36” high (457 x 914 mm)
  • 0600-T2430 – 24” wide x 30” high (610 x 762 mm)
  • 0600-T2436 – 24” wide x 36” high (610 x 914 mm)



BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
