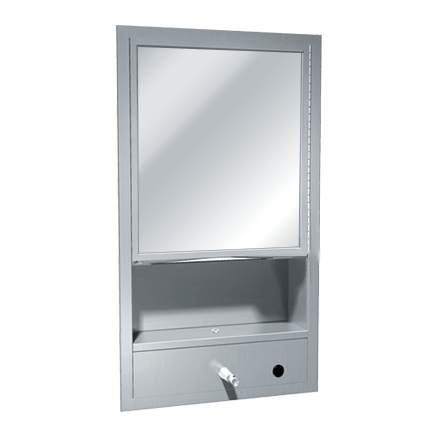

All Purpose Cabinet – Shelves, Mirror, Towel & Soap Dispenser – Recessed


Combines shelf, mirror, towel dispenser, and 101 fluid ounce (3 L) soap dispenser. Unit dispenses 600 C-fold or 800 multi-fold paper towels.

15-year mirror silver spoilage guaranty.

  • Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
  • Viscosity Range (mPa·s or cP): 100 – 2500
  • pH Range: 5.5 ~ 6.5

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Overall Dimensions:
17-1/4″ x 30-1/2″ x 6-1/2″ (430 x 775 x 165 mm)

Wall Opening:

15-3/4″ x 29″ x 4-1/4″ (400 x 740 x 110 mm)



Spout Projection: 2-1/2″ (64 mm)



American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
