9012

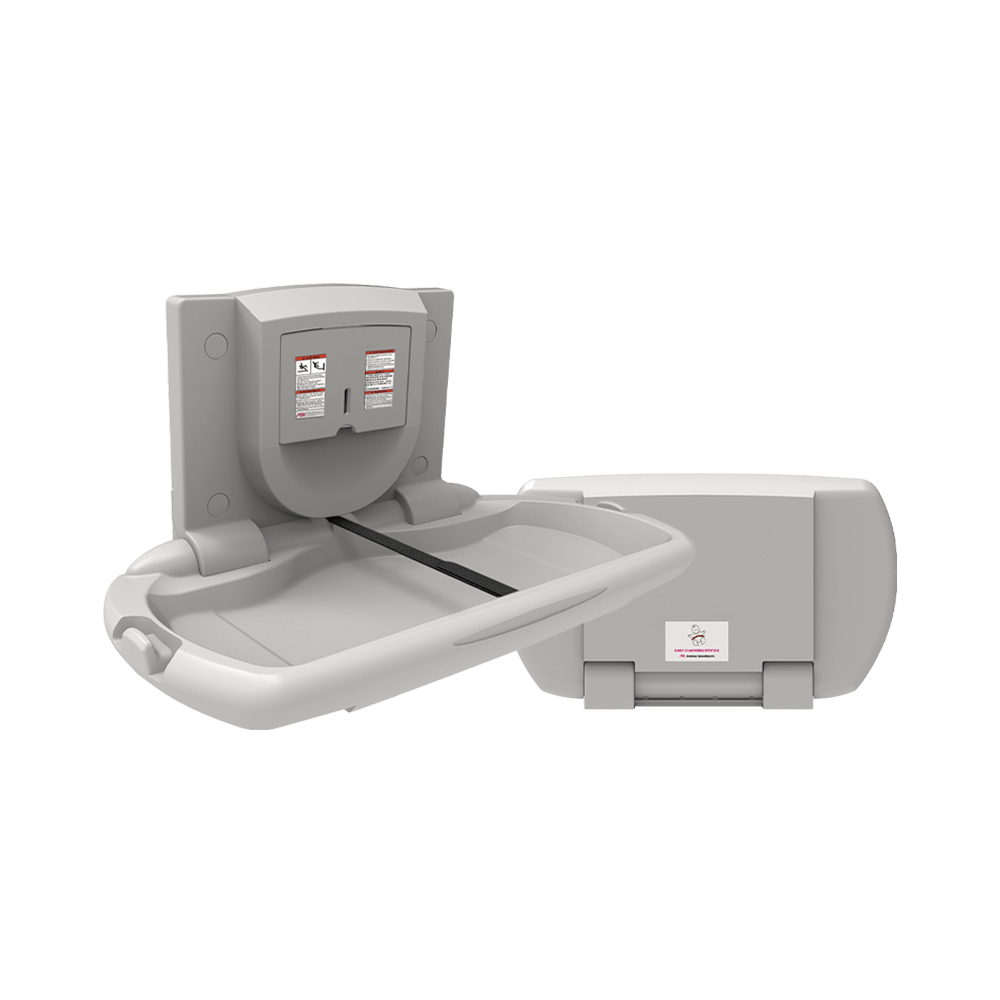

Baby Changing Station, HORIZONTAL – PLASTIC, Surface Mounted


Modern styling and easy-to-clean surface is fabricated of 100% high-density polyethylene. Unit supports a static load of 300 lbs (136 kg). Surface mounted. Only 4″ (102 mm) deep when closed.

Unit platform is shaped to cradle a child’s body. Unit is easily opened and closed by user with one hand anywhere on top or front edge of bed or using bag hooks/hand grips on sides. Unit is operable with less than 5lbs force (22.2N) while not requiring any tight grasping, pinching or twisting of the wrist. Bed liner/towel dispenser presents liners or towels for user hygiene and convenience. Dispenser lip retains stack for single liner/towel dispensing. Safety strap is easily adjustable by user for baby size and Sure-Lock latch securely resists opening until released by opposing finger pressure by adult caretaker. Liners/ towels are easily replenished by service personnel as required.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Closed:

36” x 22” x 4” (914 x 559 x 102 mm)



Open:

36” x 22” x 20-7/16” (914 x 559 x 519 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
