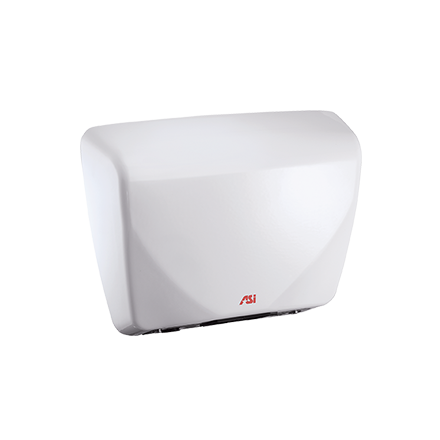

ROVAL™ Cast Iron Hand Dryers – White


Universal Voltage; Quick drying, <25 seconds, and no-touch, energy efficient operation. Automatically adjusts to voltages of 100 to 240 VAC – 50/60 Hz. Modern design and durable.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

• Quick Drying – Under 25 Seconds
• No Touch – Energy Efficient Operation
• Universal Voltage – Automatically Adjusts to Voltages of 100 to 240 VAC – 50/60 Hz.
• Modern Design and Durable.

Motor: 1/4 HP – 7500 RPM – Brush Type
Voltage: 100-240 – 50/60 Hz
Air Output: 186 CFM max (314.5 m3 /h) – Temp: 149° F (65°) @ 77° F (25°)ambient room temp
Heater: 1857 Watts
Current: 17.6 Amps @ 115 VAC;
               18.3 Amps @ 240 VAC
Dry Time: Under 25 Seconds

Decibel Level
69.2 dB-A @ 2M

Dry Time: Under 25 seconds

15-3⁄32″ x 11-7⁄32″ x 3-15⁄16″ (383 x 285 x 100 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
