129

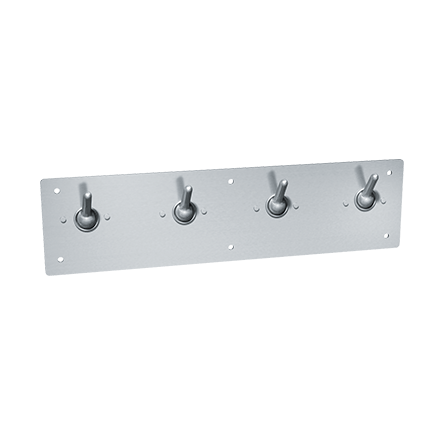

Clothes Hook Strip – Front Mount


Fabricated of type 304 stainless steel alloy 18-8. Back plate is 14 gauge. Clothes hooks will be solid bar 3/8″ diameter (Ø10) of one-piece construction with 1″ diameter (Ø25) swivel trip-ball. Safety hooks snap down when load exceeds 35 lb (16 kg) limit. Trip-ball socket housing prevents hooks from being set in vertical-up position.

The unit is provided with six (6) clear mounting holes that shall accept 1/4″-20 x 2″ long (M6 x 51) stainless steel pin-Torx® button head machine screws (supplied).

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

18” x 5-1/2” x 2-1/4” (457 x 140 x 57 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
