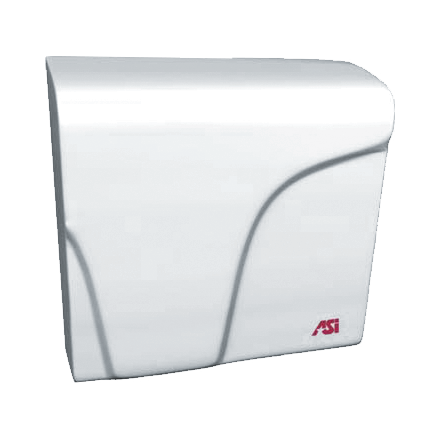

Profile™ Compact Dryer – Surface Mounted – White


Operates automatically from IR sensor that activates dryer when hands are placed in sensor zone. Motor and heating element have internal resetting automatic thermal protection.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

  • Quick Drying – Under 30 Seconds
  • No Touch – Energy Efficient Operation
  • Universal Voltage – Automatically Adjusts
  • Modern Design and Durable
Motor: ¼ HP, 7500 rpm, Brush type, dual ball bearings
Voltage: 115 – 240 VAC, 50/60 Hz. 1.6 kW
Air Output: 180 CFM max (306 m3 /h) – Temp: 140° F (60°) @ 77° F (25°)ambient room temp
Heater: 1488 Watts
Current: 14.4 Amps @ 115 VAC; 15 Amps @ 240 VAC
Dry Time: Under 30 seconds
Sound Pressure
(Decibel Level)
Max: 64 dB-A @ 2M
11-3/8″ x 11-7/32″ x 3-7/8″ (289 x 285 x 99 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
