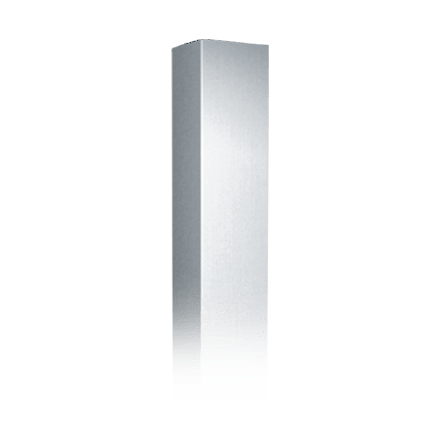

ASI 0533-48 Corner Guard

0533 Series

Surface Mounted Corner Guard


Corner Guards come in sizes up to max length of 10 feet (120″ [3048 mm]) for one (1) piece as specified (L) if not, 4 feet (48″ [1219 mm]) and are ideal for any application where you need the elegance and durability of stainless steel.

Multiple Sizes and Mounting Options available:

  • 0533-48 – 1/8” Radius, Adhesive Mounting – 48” High
  • 0533-40 – 1/8” Radius, Adhesive Mounting – 40” High
  • 0533-1 – SM Corner Guard with Beveled Edge Legs
  • 0533-2 – SM Corner Guard with Mounting Holes & Beveled Edge Legs
  • 0533-3 – SM Corner Guard with Flat Edge Legs
  • 0533-4 – SM Corner Guard with Mounting Holes & Flat Edge Legs

** See Dimensions Section for all Model Options **

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

  • 18 gauge or 16 gauge
  • Beveled Edge or Straight Edge legs
  • With or Without Mounting Holes
  • Optional Adhesive Mounting (adhesive by others)
  • 0533-48 – 4-1/4″ W x 48″ L (108 x 108 x 1219 mm)
  • 0533-40 – 4-1/4″ W x 40″ L (108 x 108 x 1016 mm)
  • 0533-1-1
    • 3-1/2″ x 3-1/2″ x 48″, 16 Ga. (89 x 89 x 1219 mm)
    • 16 Ga., Beveled Edge Legs, for Adhesive Mtg.
  • 0533-1-2
    • 3-1/2″ x 3-1/2″ x 48″, 18 Ga. (89 x 89 x 1219 mm)
    • 18 Ga., Beveled Edge Legs, for Adhesive Mtg.
  • 0533-2-1
    • 3-1/2″ x 3-1/2″ x 48″, 16 Ga. (89 x 89 x 1219 mm)
    • 16 Ga., Beveled Edge Legs, with Mtg. Holes
  • 0533-2-2
    • 3-1/2″ x 3-1/2″ x 48″, 18 Ga. (89 x 89 x 1219 mm)
    • 18 Ga., Beveled Edge Legs, with Mtg. Holes
  • 0533-3-1
    • 3-1/2″ x 3-1/2″ x 48″, 16 Ga. (89 x 89 x 1219 mm)
    • 16 Ga., Straight Edge Legs, for Adhesive Mtg.
  • 0533-3-2
    • 3-1/2″ x 3-1/2″ x 48″, 18 Ga. (89 x 89 x 1219 mm)
    • 18 Ga., Straight Edge Legs, for Adhesive Mtg.
  • 0533-4-1
    • 3-1/2″ x 3-1/2″ x 48″, 16 Ga. (89 x 89 x 1219 mm)
    • 16 Ga., Straight Edge Legs, with Mtg. Holes
  • 0533-4-2
    • 3-1/2″ x 3-1/2″ x 48″, 18 Ga. (89 x 89 x 1219 mm)
    • 18 Ga., Straight Edge Legs, with Mtg. Holes

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
