5002

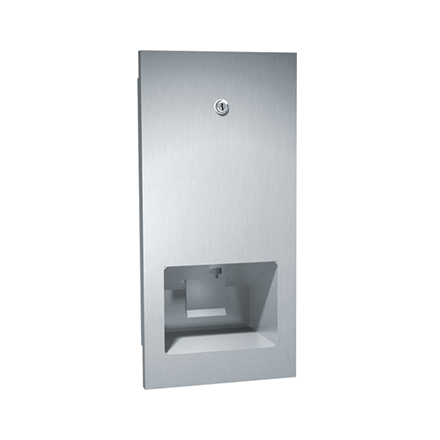

Disposa-Valve Soap Dispenser – Recessed


Fabricated of alloy 18-8 stainless steel, type 304, 18 gauge. Dispenser lever is a ruggedized Zamak alloy casting. Dispenser door attached to unit at the side with a full length 3/16′′ (5mm) dia. stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock. A refill viewer slot is provided at front face. Valve fabricated of heavy-duty vinyl and is permanently attached to a disposable soap cartridge.

Soap is forced through disposable valve by pulling a lever forward. Disposable cartridges are available to dispense soap, hand lotion, heavy duty cleaner, waterless cleaner and antiseptic soap and are typically good for 1500 washings. Typical soap cartridges are super-concentrated cleansing formula approved for medical and food handling facilities.

  • Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
  • Viscosity Range (mPa·s or cP): varies with product and manufacturer chosen; see product MSDS and info.
  • pH Range: varies per product

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Overall Dimensions:
7-1/4″ x 15″ x 4-1/2″ (184 x 381 x 115 mm)

Wall Opening:
5-3/4″ x 13-1/2″ x 4-1/4″ (146 x 343 x 108 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
