8155

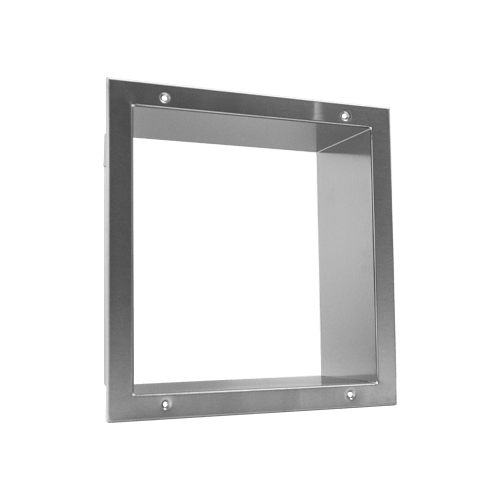

Extensive Sleeve & Flange – 5-1/2″ to 9-7/8″ wall depth


Sleeve extends cabinet profile through wall to provide clear access to door. Door inside extension sleeve will only open 90° and will be returned by internal extension spring when released by user. Interlocked compartment doors will still preserve user privacy by preventing opening of opposite door until first door is fully closed in the same manner as the standard unit.

Used with product 8154.  Extension sleeve and flange for Recessed Specimen Pass-Through Cabinet. Sleeve slides over cabinet of Model No. 8154 in place of standard adjustable flange and does not prevent rear door from opening.

(Included with Model No. 8156)

Technical Data Sheet

Product Specifications

Overall Dimensions:

13-1/4″ x 12-3/4″ x 6″ (337 x 324 x 152 mm)



Wall Opening:

11-1/2″ x 11″ x 5-1/2″ min to 9-7/8″

(292 x 279 x 140 – 251 mm)



American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
