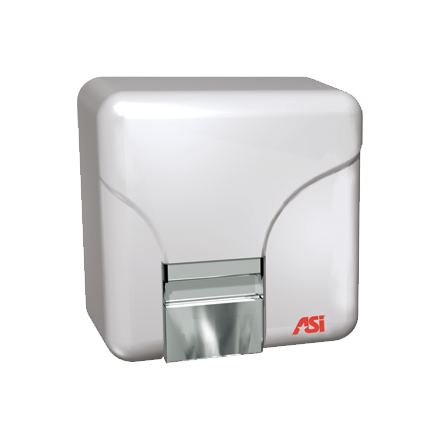

“No Touch” Dryer (208-240v.) – Surface Mounted – White


Quick drying, <30 seconds, and no-touch, energy efficient operation. Dries both hands and face. 208-240 Vac 11 Amps

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

• Quick Drying – Under 30 Seconds
• No Touch – Energy Efficient Operation
• Dries Both Hands and Face

Motor: 1⁄8 HP-3150 RPM – Brushless
Air Output: 150 CFM – Temp 127° F (53° C)

Voltage:
110-120 VAC, 50/60 Hz. 1.6 kW
Air Output: 142.4 CFM max (306 m3 /h) – Temp: 127° F (53°) @ 77° F (25°)ambient room temp
Heater: 1704 Watts
Current: 15 Amps @ 115 VAC
Dry Time: 20 – 25 seconds

Decibel Level
Min: 60 dB-A @ 2M
Max: 66 dB-A @ 2M

Dry Time: Under 30 seconds

9-7⁄16″ x 9-41⁄64″ x 6-3⁄8″ (240 x 245 x 162 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
