0481-HCR

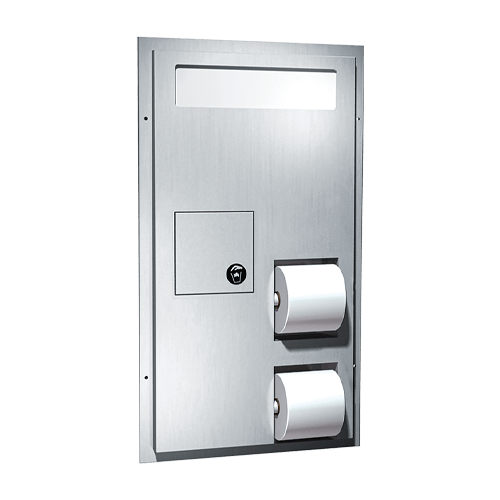

Toilet Seat Cover & Toilet Tissue Dispensers w/ Napkin Disposal (Dual Access) for Handicapped – Reverse


Toilet tissue and receptacle on opposite sides of 0481-HC.

One side mounts flush on barrier-free compartment side to allow grab bar clearance. Usable by both sides but serviced from one side. Access door shall be opposite HC stall.

Holds 1000 seat covers and 4 rolls of standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper. Removable waste container has a waste capacity of 1.3 gal (4.9 liters).

Cabinet door is held closed with two (2) tumbler locks. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] are supplied.

Technical Data Sheet

Product Specifications

Overall Dimensions:
17-3/8” x 30-5/8″ x 4-1/4″ (441 x 778 x 108 mm)

Partition Opening:
15-1/2″ x 28-7/8″ x 1/2” to 3-3/4”
(394 x 733 x 13 to 95 mm)


American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
