046921-6

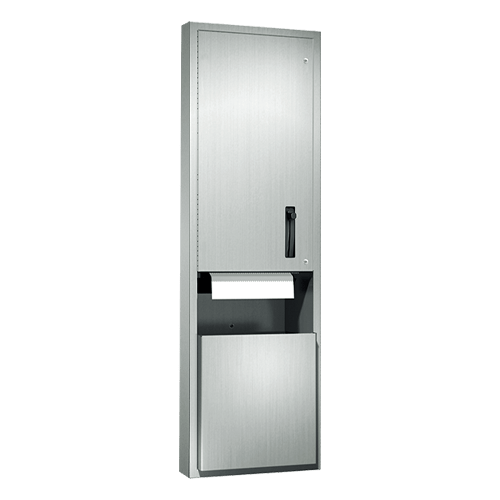

Roll Paper Towel Dispenser & Waste Receptacle – Semi-Recessed


Unit mechanically dispenses 8″ or 9″ wide standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing. 13.3 gal. (50.4 liters) disposal capacity.

Semi-recessed with 6″ stainless steel collar.

Towels are fed by depressing lever until supply is depleted. Towel feed length is adjustable for economy by pin (supplied) limiting of lever stroke length. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Overall Dimensions:

17-1/4″ x 56″ x 11-3/4″ (438 x 1422 x 298 mm)



Wall Opening:

15-3/4″ x 54-1/2″ x 4″ (400 x 138 x 102 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
