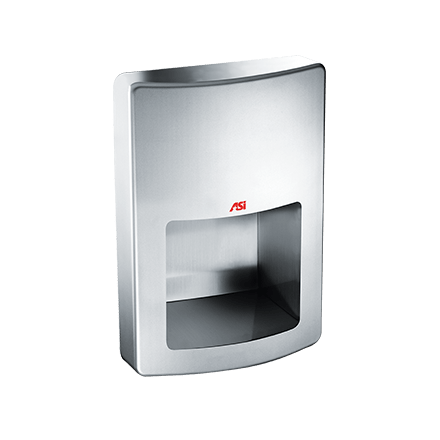

Roval™ Semi-Recessed Automatic Hand Dryer


This high performing hand dryer, with a drying time of less than 15 seconds, has a cover made of 18 gauge stainless steel and uniquely complements the Roval™ Collection with its bowed face and gently radiused edges. 5-year warranty.
Optional voltages available.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

  • Quick drying — less than 15 seconds
  • Operates automatically using infrared sensor
  • Auto-resetting thermostat
  • 60-second automatic shut off
  • Cover fabricated of heavy-duty, one-piece-formed stainless steel
Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings
Voltage:
  • 20199-1: 120 VAC, 50/60 Hz. 1.0 kW
  • 20199-2: 240 VAC, 50/60 Hz. 1.0 kW
Air Output: 60 CFM max – Temp: 131º F ± 5@ 77º F (55o C ±2.8 @ 25o C) ambient room temp
Output Air Speed: 201 mph (295 ft/s) [90 m/s {324 km/h}]
Heater: 500 Watts
Current: 8.3 Amps @ 120 VAC;
               4.2 Amps @ 240 VAC
Dry Time: Under 15 seconds

Max: 66 dB-A @ 2M

Overall Dimensions:
11″ x 15-1/2″ x 5-23/32″ (279 x 394 x 145 mm)
Wall Opening:

(Conforms to ADA) 10-1/2” x 15-1/8” x 3-5/32” (267 x 384 x 80 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
