1224

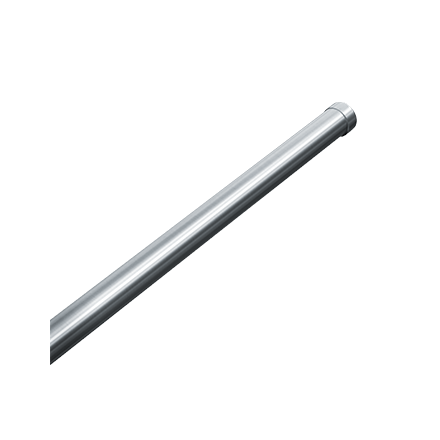

SHOWER CURTAIN ROD W/ CONCEALED MOUNTING FLANGES


Rod is fabricated of alloy 18-8 stainless steel, type 304, No.20 gauge 1″ dia. tubing. Length as specified.

Concealed Mounting Flanges (Part 1224-1) are chrome plated brass with a satin finish. Pair of flanges consist of a wall mounting lug and a locking sleeve. One sleeve includes locking screw to prevent rod rotation. Mounting lugs provided with (2) mounting holes to accept #10 round or pan head screws (furnished by others).

Select length in inches (i.e. 48, 60, 120) to create Part Spec Order Number (i.e. 1224-60).

Rod is installed in straight section between two (2) mounting flanges. Rods longer than 72″ (1829mm) require ceiling hanger Model No. 1224-C18. For use with standard shower curtain Model No’s 1200 or 1200-V having 72″ (1829mm) length and standard hooks Model No. 1200-SHU unit should be installed with rod centerline 74-1/2″ (1892mm) AFF or 67″ (1702mm) above tub rim to obtain 6″ (152mm) bottom overlap.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

1″ DIA tubing



Select length in inches (i.e. 48, 60, 120) to create Part Spec Order Number (i.e. 1224-60).

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
