64696A ASI Automatic Roll Paper Towel Dispenser And Waste Receptacle

64696AC

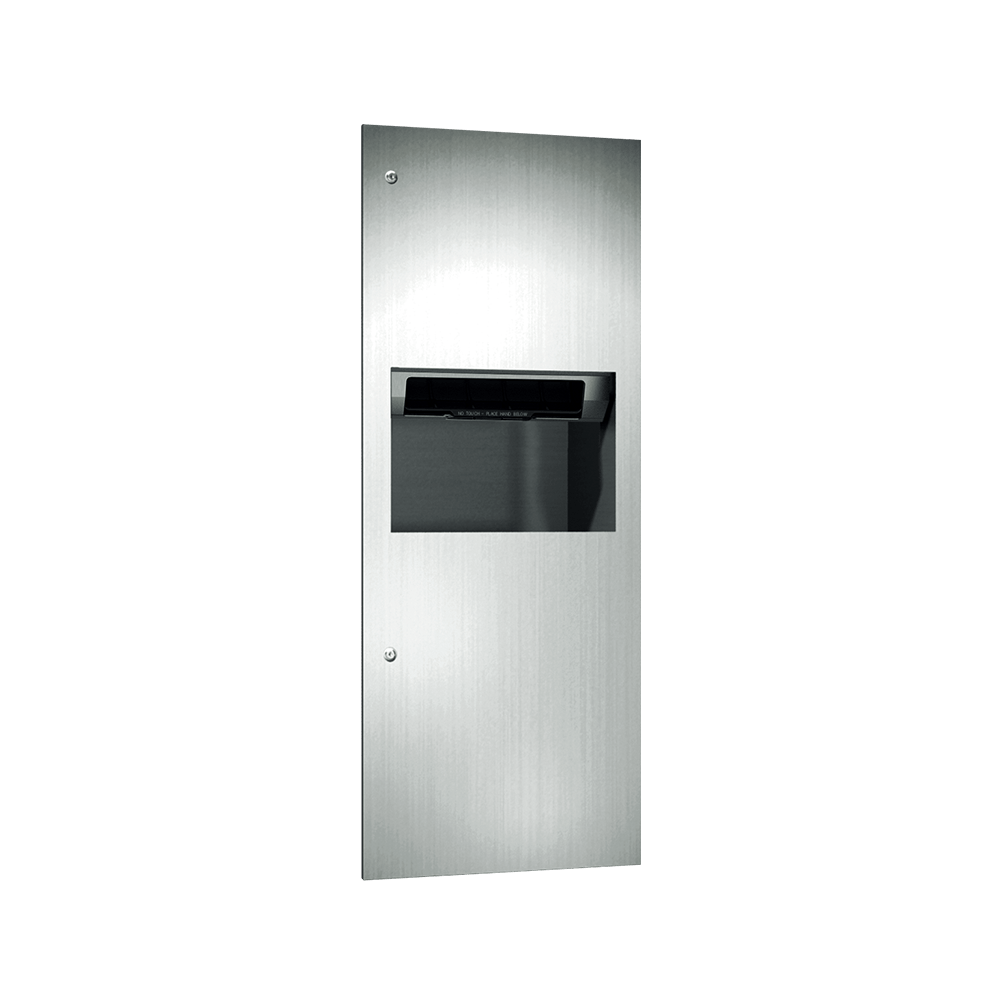

Simplicity Collection Automatic Roll Paper Towel Dispenser & Waste Receptacle, 110-240V / AC – Recessed


Proximity sensing no-touch unit holds and dispenses one 8″ diameter [Ø203] x 8″ wide [203] standard towel roll up to 800 ft. (244m) long and one 8″ wide [203] stub roll up to 4″ diameter [Ø102] and automatically changees over to main roll when finished with stub roll when feed tabs are properly engaged. Waste receptacle has a capacity of 9.9 gallons (37.3 L).

Powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Overall Dimensions:

16-1/16″ x 41-1/4″ x 10-1/4″ (408 x 1048 x 261 mm)



Wall Opening:

14-5/8″ x 39-3/4″ x 10″ (371 x 1010 x 254 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
