64696A-AC-6

64696A-6

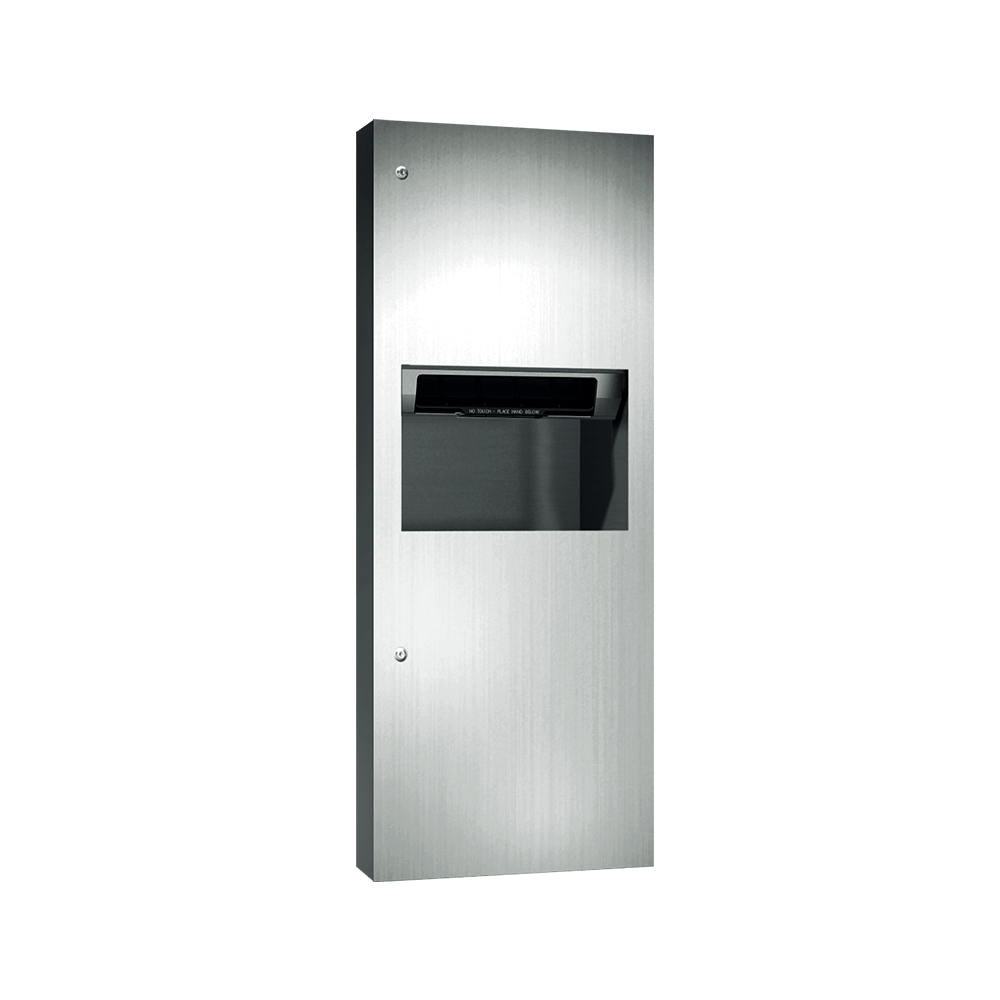

Simplicity Collection Automatic Roll Paper Towel Dispenser & Waste Receptacle, Battery Operated – SEMI-RECESSED


Proximity sensing no-touch unit holds and dispenses one 8″ diameter [Ø203] x 8″ wide [203] standard towel roll up to 800 ft. (244m) long and one 8″ wide [203] stub roll up to 4″ diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Waste receptacle has a capacity of 9.9 gallons (37.3 L).

Semi-recessed with 6″ stainless steel collar.

Powered by four (4) D-size batteries (not supplied) and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.



BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Overall Dimensions:

16-1/16″ x 41-1/4″ x 10-1/4″ (408 x 1048 x 261 mm)



Wall Opening:

14-5/8″ x 39-3/4″ x 4″ (371 x 1010 x 102 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
