04813

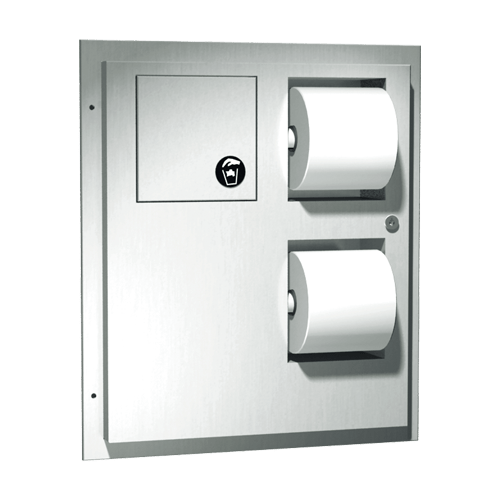

Toilet Tissue Dispenser / Napkin Disposal (Dual Access) – Partition Mounted


Mounts through partition, usable by both sides but serviced from one side. Holds 4 rolls of standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper. Removable waste container has a waste capacity of 1.3 gal (4.9 liters).

Cabinet door is held closed with two (2) tumbler locks. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] are supplied.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Overall Dimensions:

17 3⁄8″ x 20″ x 4-1/4″ (441 x 508 x 108 mm)



Partition Opening:

15-1/2″ x 18-1/4″ x 1/2″ to 2″ (394 x 464 x 13 to 51 mm)



American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
