04823

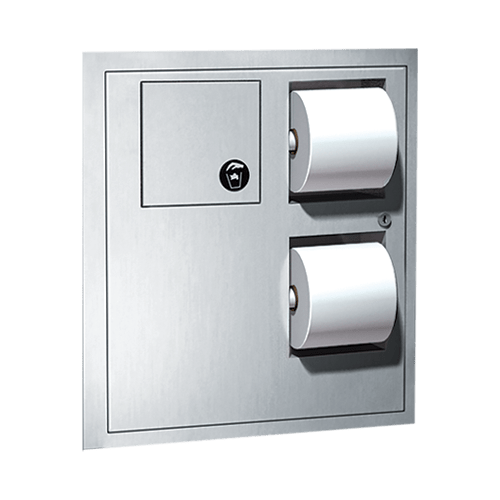

Toilet Tissue Dispenser / Napkin Disposal – Recessed


Similar to 04813 for end stall installation.

Holds two (2) rolls standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper. Removable waste container has a capacity of 1.3 gal (4.9 liters) or 300 in3 (.005 m3 ).

Cabinet door is held closed with tumbler lock. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and two (2) rollers [p/n R-004] are supplied.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Overall Dimensions:

17-3⁄8″ x 20″ x 4-1/4″ (441 x 508 x 108 mm)



Wall Opening:

15-3/4″ x 18-3/8″ x 4″ (400 x 467 x 102 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
