0715

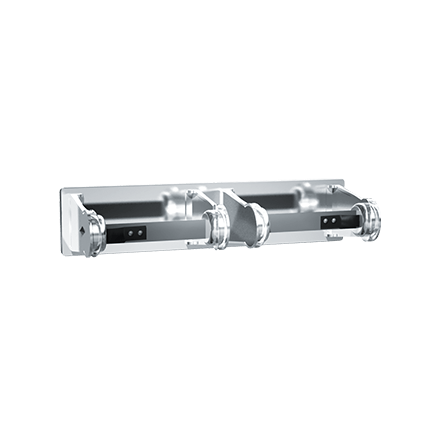

Toilet Tissue Holder (Double) – Chrome Plated – Surface Mounted


Holds two (2) rolls of standard core size toilet tissue up to 6″ diameter (Ø152) and 4-1/8″ to 4-3/4″ (105-121) wide. Unit fabricated of polished chrome-plated steel. Brake springs provide controlled delivery for each roll of toilet paper. Roll core prevents access to release catch spring and roll shall be non-removable until roll is depleted.

Toilet paper is dispensed with controlled delivery from each roll. Roll is replaced on a cycle determined by maintenance needs. Roll cores prevent access to release catches and must be removed to allow end support arms to swing away for service roll replacements.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

12-3/8″ x 2-3/4″ x 4-1/4″ (314 x 70 x 108 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
