Architect’s Resource & Specification Builder

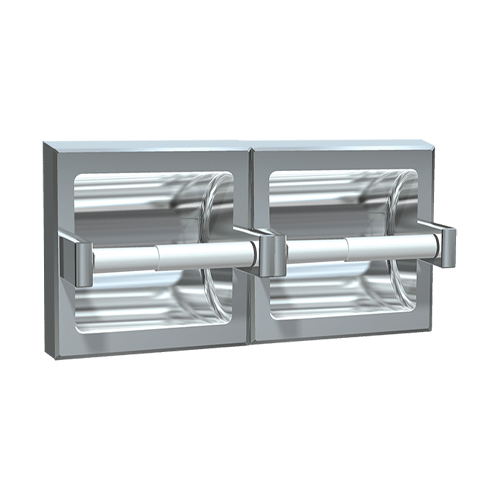

74022 Bsm Tp Holder 500x500

74022-BSM

Toilet Tissue Holder (Double) – Surface Mounted, Bright


Bright Finish. Surface Mounted Double Toilet Tissue Holder holds and dispenses all standard core roll tissue up to 6’’ diameter (Ø152) roll (holds two (2) rolls). Fabricated of stainless steel type 304 alloy 18-8. Roller is chrome plated high impact resistant ABS plastic and spring-loaded.

Select product with options from Model Options drop-down, below:

  1. Optional finish and mounting style must be specified as either bright. Specify finish and mounting by adding code suffixes to model number (i.e. 74022-BSM).
  • -B: Bright Finish
  • -H: With Hood
  • For theft-resistant spindle, add R-009 after model number.
string(22) "Bright Stainless Steel"
Finish Options: Bright Stainless Steel
Product Specifications

INSTALLATION

For Standard Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill four (4) 7/32″ diameter (Ø5.6) clearance holes through tile and/or wallboard only. Use four (4) No 10 stainless steel Philips flat or oval head self-tapping or wood screws (by others) of suitable length to penetrate blocking in wall by approximately 1/2″ (13). Tighten screws to hold unit tight against finished wall face.

Optional Method for Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill four (4) holes appropriate for expansion anchors into masonry substrate. Tap proper expansion anchors (provided by others to suit wall conditions) into wall to be flush with wall face. Use four (4) stainless steel Philips flat or oval head No 10AB self-tapping screws (provided by others to suit wall conditions) through dimpled holes at back of shell. Tighten screws to hold unit tight against finished wall face.

For compliance with ADA Accessibility Guidelines install unit with centerline of roller 19″ (483) min AFF to 42″ (1067) max AFF and 7″ (178) min to 9″ (229) max from front of commode to centerline of dispenser.



Overall Dimensions:

12-5/8″ x 6-5/16″ x 2″ (320 x 160 x 51 mm)

Features
Stainless Steel

Stainless Steel
Construction

Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.

Safe Easy

Safe Easy
Dispensing

Dispensing and storage options vary, from single roll to multiple rolls or jumbo roll dispensers.

Delivering Exactly What You Need—Where You Need It.
See Global Reach

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
