111-ASI

111

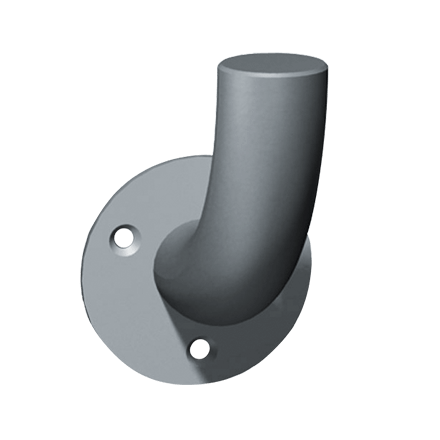

Toilet Tissue Holder – Front Mount


Fabricated of 18 gauge 1 1/4″ (32 mm) OD stainless steel type 304 with satin finish. Flange is 3″ (76 mm) diameter x 1/8″ (3 mm) thick and has 3 countersunk holes for front mounting.

One roll of toilet paper is placed over the horn type holder for use as required.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

3″ (76 mm) DIA Flange for Mounting

Holder Hook:
1-1/4″ DIA x 3-1/4″ H x 3-1/4″ Projection
(32 DIA x 83 x 83 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
