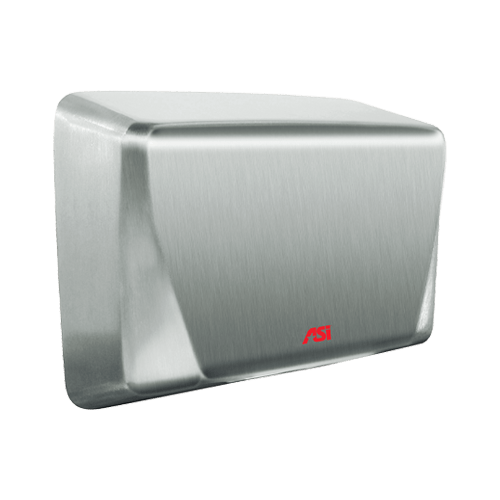

TURBO ADA™ HIGH-SPEED Hand Dryer (208-240V) – ADA COMPLIANT – 93 Satin Stainless Steel


Fast drying, <15 seconds, and automatic operation using infrared sensor with auto-resetting thermostat. Owner- adjustable air speed & temperature and on/off heating options with shut off when user removes hands from sensor zone. (208-240V) Satin Stainless Steel finish.

Finish Options: Satin Stainless Steel

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat
• Owner-adjustable air speed and air temperature
• On/off heating options
• Dryer automatically shuts off after time-out when user removes hands from sensor zone
• White cover is standard. Optional finishes include Bright or Satin Stainless Steel

Motor:  0.67 HP 16-29 KRPM – Adjustable brush type dual ball bearings

Voltage:
• 0199-1: 115-120 VAC, 50/60 Hz. 1.0 kW max
• 0199-2: 208-240 VAC, 50/60 Hz. 1.0 kW max
• 0199-3: 277 VAC, 50/60 Hz. 1.0 kW
Heater: 325 – 450 Watts
Current: 10.4 Amps @ 110 VAC
Dry Time: Under 15 Seconds
Noise (Decibel) Level: Max: 74.0 dB-A @ 2M
5-year warranty

Decibel Level
68.9-74.3 dB-A @ 2M

Dry Time: Under 15 seconds

10-5/8″ x 8-15/32″ x 4″ (270 x 215 x 102 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
