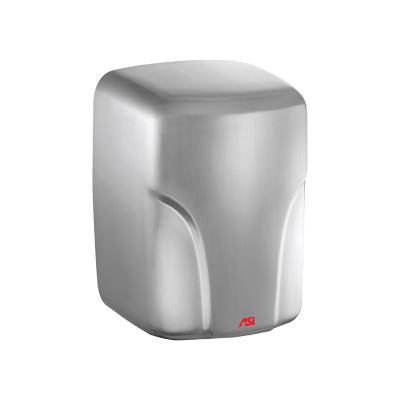

TURBO-Dri™ High-Speed Hand Dryer (220-240V) – 93 Satin Stainless Steel


Quick drying, <12 seconds, and powerful, yet quiet, with 60-second auto shut off; automatic operation using infrared sensor with auto-resetting thermostat. Heavy-duty, one-piece-formed unit. (220-240V) Satin Stainless Steel finish.

Finish Options: Satin Stainless Steel

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

  • Quick drying — less than 12 seconds
  • Operates automatically using infrared sensor
  • Auto-resetting thermostat
  • 60-second automatic shut off
  • Cover fabricated of heavy-duty, one-piece-formed stainless steel

Motor: 1 HP, 7-18 krpm, adjustable, brush type, dual ball bearings

• 0197-1: 120 VAC, 50/60 Hz. 1.6 kW
• 0197-2: 240 VAC, 50/60 Hz. 1.6 kW
Air Output: 68 CFM max – Temp: 140° F (60° C)
Output Air Speed: 156 mph (229 ft/s) [70 m/s {251 km/h}] – 224 mph (329 ft/s) [100 m/s {361 km/h}]
Heater: 400 – 900 Watts
Current: 14.6 Amps @ 120 VAC;
7.3 Amps @ 240 VAC
Dry Time: Under 12 seconds

DAILY USAGE COST
Average drying time of 12 seconds
at maximum output settings
• Average of 200 uses / day
• Average 12 seconds / use
• Average daily usage is 2400 seconds
• Equals 0.666666667 hours
• Energy used in operation 1.47 Kw
• $0.11 / KW Hour
Cost per day = $0.108

Min: 59 dB-A @ 2M, Max: 72 dB-A @ 2M
Dry Time: Approx. 12 seconds

Overall Dimensions:
8-1/16″ x 11-19/64″ x 7-5/64″
(205 x 287 x 180 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
