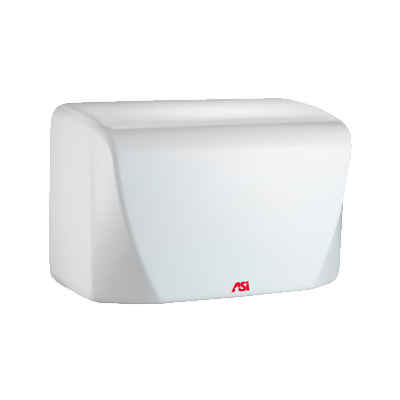

TURBO-Dri™ Jr. HIGH SPEED Hand Dryers (220-240V) – White


Powerful, quick drying, <15 seconds, yet quiet (69 dB-A); automatic operation and resetting thermostat with 2-second delayed turn off. Heavy-duty, one-piece-formed unit. (220-240V) White.

Finish Options: White

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat
• 60-second automatic shut off
• Cover fabricated of heavy-duty, one-piece-formed stainless steel

Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings

• 0198-1: 120 VAC, 50/60 Hz. 1.6 kW
0198-2: 240 VAC, 50/60 Hz. 1.6 kW
Air Output: 68 CFM max – Temp: 140° F (60° C)
Output Air Speed: 156 mph (229 ft/s) [70 m/s {251 km/h}] – 224 mph (329 ft/s) [100 m/s {361 km/h}]
Heater: 500 Watts
Current: 10.4 Amps @ 120 VAC;
                 5.2 Amps @ 240 VAC
Dry Time: Under 15 seconds

Decibel Level
66 dB-A @ 2M

Dry Time: Under 15 seconds

9-25/32″ x 6-5/8″ x 5-13/32″ (248 x 168 x 138 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
