0134_ASI-TurboTuff-HandDryer@2x

0134

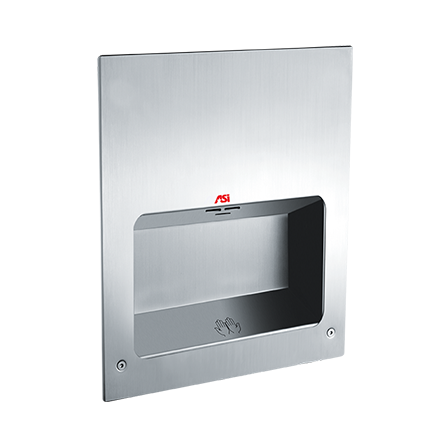

TURBO-TUFF™ FULLY RECESSED Automatic HIGH SPEED Hand Dryer – ADA COMPLIANT – Discontinued


Fast drying, <15 seconds, operates automatically using infrared sensor with auto-resetting thermostat. Owner-adjustable air speed & temperature and on/off heating options. Dryer automatically shuts off after time-out when user removes hands from sensor zone.

Optional voltages available:

  • 0134-1 (115-120V)
  • 0134-2 (208-240V)
  • 0134-3 (277V)

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

• Fast drying — less than15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat
• Owner-adjustable air speed and air temperature
• On/off heating options
• Dryer automatically shuts off after time-out when user removes hands from sensor zone

68.9-74.3 dB-A @ 2M

Dry Time: Under 15 seconds

Overall Dimensions:

12-19/32″ x 15-3/4″ x 4-1/16″ (320 x 400 x 103 mm)



Wall Opening:

12-5/16″ x 15-3/16″ x 3-7/8″ (313 x 386 x 98 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
