0458 ASI Waste Receptacle

0458-CX

Waste Receptacle (1/2” proj., 7-1/2” rec.) – Semi-Recessed, 12 Gallons

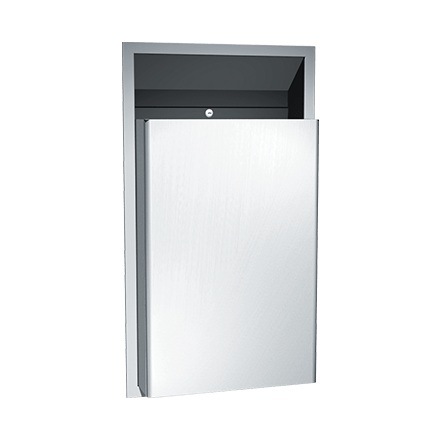

Semi-Recessed Waste Receptacle has a capacity of 12 gal (46 liters). Frame, waste receptacle and cabinet are fabricated of 22 gauge stainless steel alloy 18-8, type 304. Waste receptacle has hemmed edges for safety and internal hooks for hanging a reusable vinyl bag (optional, supplied separately, model 58-PY for 12 gal). A tumbler lock keyed retains waste receptacle. Container locks into cabinet, removable for servicing.

Projection Recess: 1/2″ (13 mm) 7-1/2″ (190 mm). 12 Gal. (46 L).

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

Unit Size:

17-1/4″ x 30-1/2″ x 8″ (438 x 775 x 203 mm)



Wall Opening:

15-3/4″ x 29″ x (variable*) (400 x 737 mm)



  • 0458: 4″ (102 mm) x 4″ and 12 gals. (46 L)
  • 0458-CX: 1/2″ (13 mm) x 7-1/2″ (191 mm) and 12 gals. (46 L)
  • 0458-DX: 8″ (203 mm) x 4″ (102 mm) and 18 gals. (68 L)
  • 0458-9: for 9″ collar for surface mounting option

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
