204523A

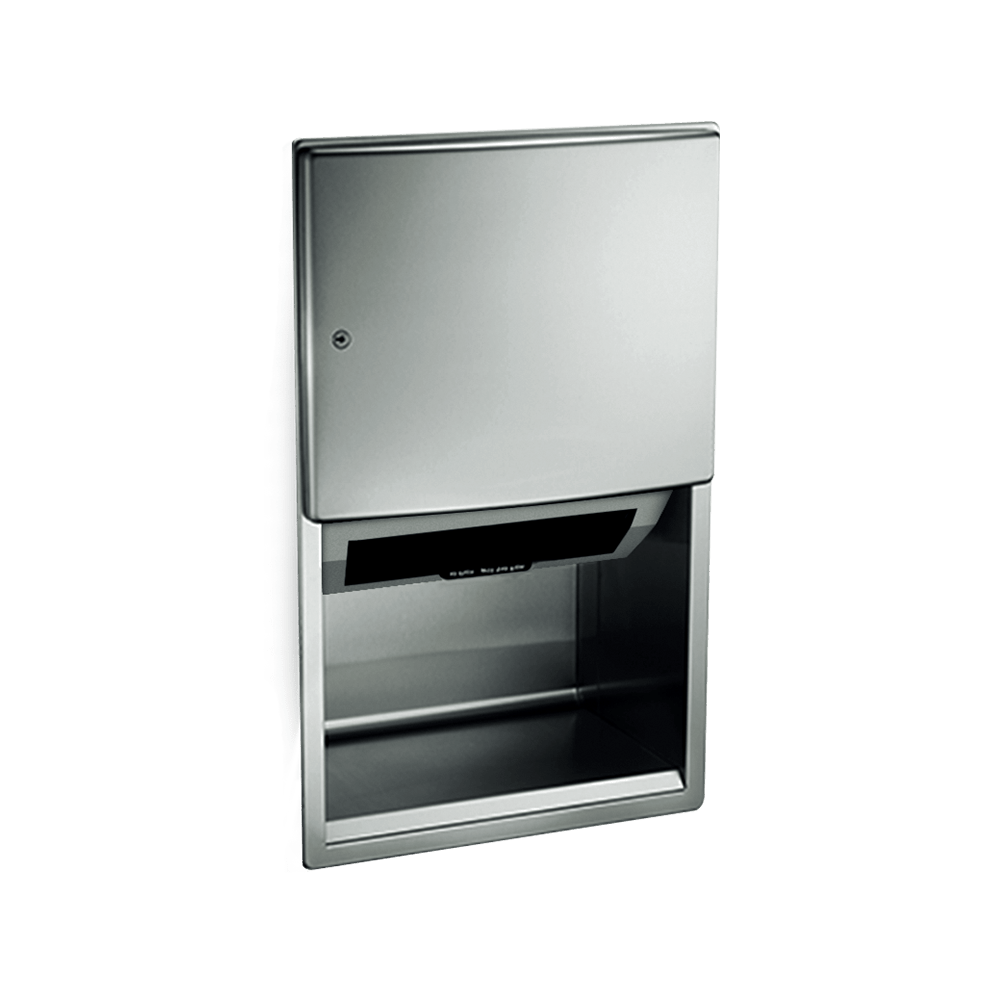

ROVAL™ RECESSED AUTOMATIC ROLL PAPER TOWEL DISPENSER


Fabricated of 22 gauge stainless steel with satin finish. Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted. Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position.

Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Dispenser supply is replenished and batteries are replaced manually. LED indicates sensing and battery condition. Locking door prevents unauthorized access and roll removal.

Powered by 4 D-size batteries (not included).

Product Specifications

Overall Dimensions:

17-3/8″ x 27-3/4″ x 11-11/16″ (441 x 705 x 297 mm)



Wall Opening:

15-3/4″ x 26″ x 10″  minimum (400 x 660 x 254 mm)

Features
Stainless Steel

Stainless Steel
Construction

Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.

Tumbler

Tumbler
Locks

Our tumbler locks provide convenience and security with an elegant look.

Staked Piano

Staked Piano
Hinges

Our heavy-duty, staked piano hinges provide security and a neat appearance, and they stand up to heavy use.
