GrabBar-Type-01

3000 Series

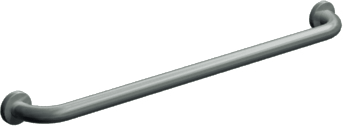

1″ DIA – Grab Bar-Towel Bar with Flanges for Concealed Mounting


Grab Bar-Towel Bar with Flanges for Concealed Mounting shall be type 304 stainless steel alloy 18-8.  Tubing shall be 1″ diameter (Ø25) x 18 gauge (1.2).  Flange shall be heliarc welded to tubing with a continuous concealed bead and shall be 11 gauge (3) thick.  Three (3) tamper resistant 1/4-28 stainless steel hex socket set screws shall be supplied for each flange. Mounting Tenon plates shall be fabricated of case hardened cadmium plated 13 gauge (2.3) steel.

EXPOSED FLANGE – 3000 SERIES – TUBING 1″ DIAMETER

Please select a Model Option below for additional information on each configuration.

BIM Objects

BIM Objects

BIM Objects

BIM Objects

BIM Objects

Technical Data Sheet

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
