20363_sm

20363

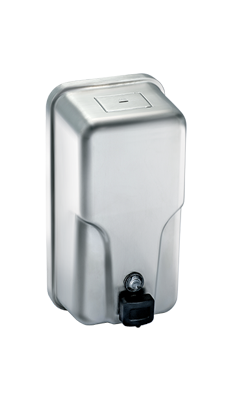

Roval™ Surface Mounted Vertical Soap Dispenser


Push button. Valve operation is ADA compliant, needing no more than 5 lbs. of pressure to actuate. Gently radiused edge complements the curves of the ASI Roval™ Collection.

Capacity: 57 oz. (1.7 L).

  • Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
  • Viscosity Range (mPa·s or cP): 1 – 5500
  • pH Range: 5.5 ~ 8.5

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

BIM Objects

BIM Objects

Technical Data Sheet

Product Specifications

5-1⁄2″ x 10-13⁄16″ x 4″ (139 x 274 x 101 mm)

Spout Projection: 15⁄16″ (24 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
