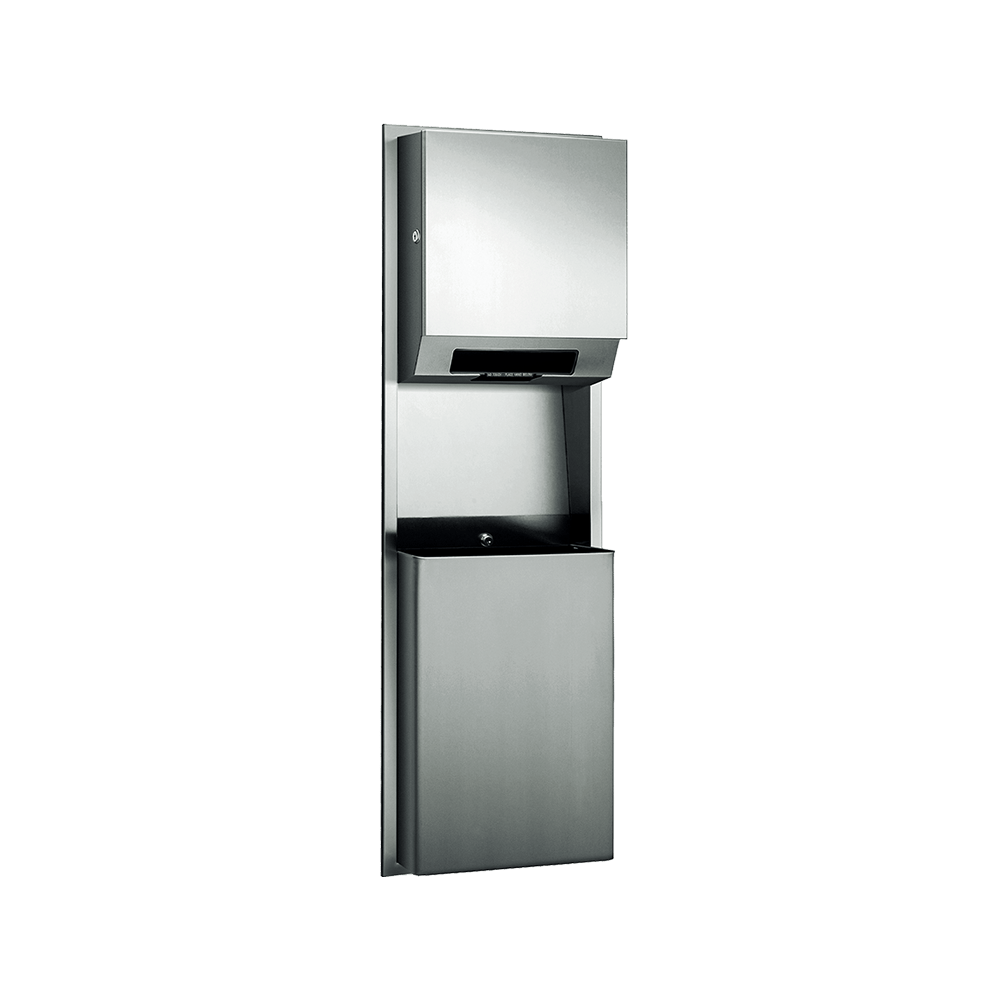

Automatic Roll Paper Towel Dispenser & Waste Receptacle, 110-240V / AC – Recessed, 12 gal.

Proximity sensing no-touch recessed unit dispenses a pre-set length per cycle from 8″ or 9″ (205 or 230 mm) wide, 800 ft. (244 mm) long rolls. 12 gal. (45.4 L) waste receptacle.Ā

Powered by C-UL-US and CE approved internal low-voltage adapter (supplied) using 110-120VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone.

string(0) ""

Technical Data Sheet

Product Specifications

Overall Dimensions:

17-1/4″ x 56″ x 10-1/4ā€ (438 x 1422 x 260 mm)


Wall Opening:

15-3/4″ x 54-1/2″ x 4″ (400 x 1384 x 102 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
