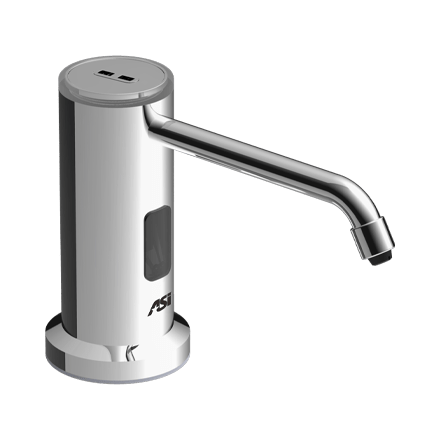

Automatic Top Fill Liquid Soap Dispenser – Vanity Mounted

Anti-theft top opens with funnel that has built in key for neat and easy maintenance. LED ring indicates low liquid soap levels and incorrect soap. Smart Sensor prevents messy overfilling by beeping and flashing LED ring. AC powered.

Capacity: 51 oz. (1.5 L) of liquid soap.

  • Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
  • Viscosity Range (mPa·s or cP): 1 – 3k
  • pH Range: 5.5 ~ 8.5

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

Product Specifications

Unit Size: 1-1/2″ x 5-3/8″ (38 x 137 mm)

Spout Projection: 3-7/8″ (98 mm)



Helps reduce the spread of germs

Delivering Exactly What You Need—Where You Need It.
See Global Reach

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
