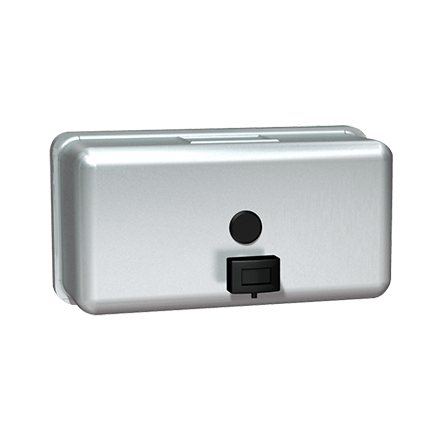

FOAM SOAP DISPENSER – HORIZONTAL – SURFACE MOUNTED


40 fl. oz. (1.2 L) capacity foam soap dispenser in stainless steel; satin finish comes with an all purpose valve and a tamper-resistant refill indicator.

Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open. Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manually.

  • Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
  • Viscosity Range (mPa·s or cP): 1 – 100
  • pH Range: 5.5 ~ 8.5

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

Product Specifications

8-3/16” x 4-13/16” x 4-1/2” (208 x 122 x 114 mm)
Spout projection: 1-1/8″ (29 mm)
Features
Stainless Steel

Stainless Steel
Construction

Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.
