Architect’s Resource & Specification Builder
0361 Soap Dispenser 440x440

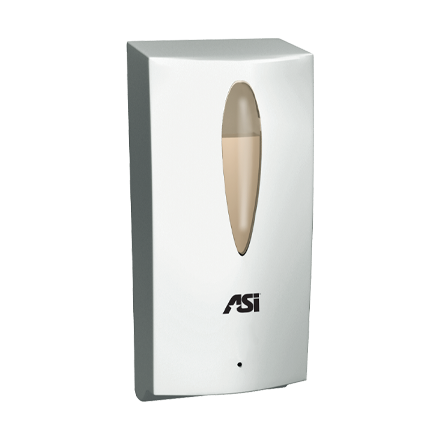

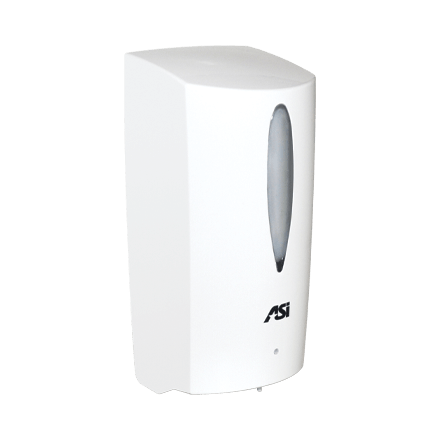

Automatic Liquid Soap and Gel Hand Sanitizer Dispenser – Plastic – 28 oz. – Surface or Stand Mounted

TOUCHLESS OPERATION:  A single shot of liquid soap or gel hand sanitizer is automatically dispensed by a battery operated mechanism when the sensor under the dispenser is activated.

White, high-impact plastic, tamper-resistant soap or gel hand sanitizer level viewing window, swing open body with special lock and key.

Unit can be either wall mounted or mounted to a mobile stand.

  • Powered by one 9V or 6 AA-size batteries (not included).
  • Capacity: 28 fl. oz. (0.8 L) of liquid soap or gel hand sanitizer
  • Soap Requirements: Proper usage of this dispenser requires, that only soap or gel hand sanitizer within the following range for viscosity and pH may be used.

Liquid Soap Viscosity Range (mPa·s or cP): 5 – 3.5k

Gel Hand Sanitizer Viscosity Range (mPa·s or cP): 3.5k – 23k

pH Range: 5.5 ~ 8.5

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

string(0) ""
Product Specifications

4-5/8” x 10-5/16” x 4-7/16” (118 x 262 x 113 mm)


Makes it portable and easier to install anywhere



Helps reduce the spread of germs

Delivering Exactly What You Need—Where You Need It.
See Global Reach

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
