Top Fill Illustration Dispenser Web


Top Fill, Multi-Feed Liquid Soap Dispensers

Save time and save your knees with ASI’s newest Top Fill Multi-Feed soap dispensing system. Fill up to 12* automatic liquid or foam soap dispensers with one pour using the counter fill port connected to a large capacity, leak-proof tank−a perfect addition to any high traffic washroom.

Liquid soap dispensers are constructed of type 304 stainless steel with a satin finish, and are battery or AC power operated. Dispensers are equipped with individual replaceable control pumps.

Multi-Feed Dispenser Heads do not include a Top Fill Multi-Feed tank.

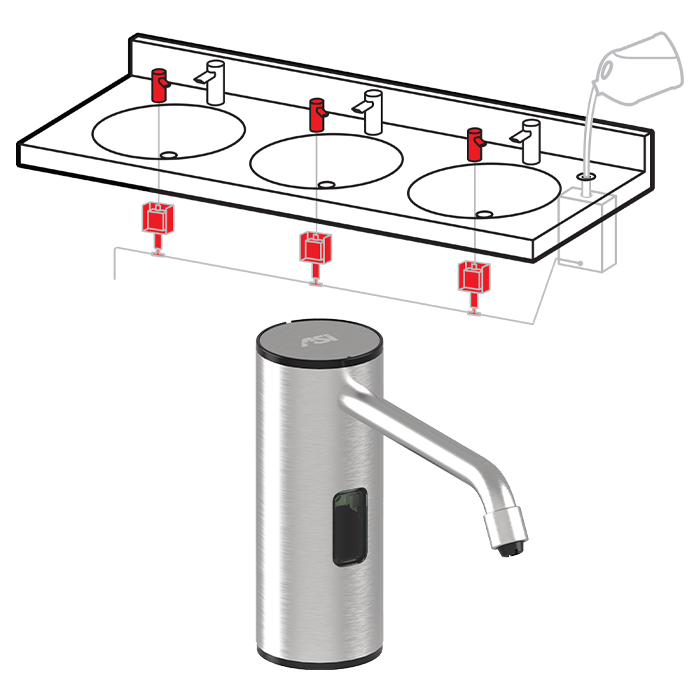

How it works:

The control module/pump attached to this dispenser head (mounted below vanity) is fed soap through a supply tube connected to the Multi-Feed Tank (#0387 not included). A multi-feed dispensing system is created when additional dispensers, connected by soap tubing, are added.

*Maximum 6 dispensers on each side of soap tank, see Installation Guide and Owner’s Manuals for proper installation.

Model Options available, choose appropriate suffix:

  • 0388-1A – Top Fill, Multi-feed LIQUID Soap Dispenser – Battery Operated (6 D Cell – not included) Polished Finish
  • 0388-1AC – Top Fill, Multi-feed LIQUID Soap Dispenser – AC Power Operated -Polished Finish


  • Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
  • Viscosity Range (mPa·s or cP): 5 – 3k
  • pH Range: 5.5 ~ 8.5

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.
