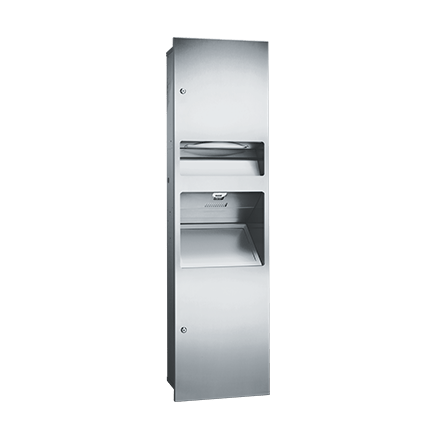

Simplicity Collection 3-in-1 – Paper Towel Dispenser, HIGH SPEED Hand Dryer & Waste Receptacle – Recessed (110-120V)


110-120 V. Holds and dispenses 500 standard multi-fold or 400 standard C-fold paper towels and has a waste capacity of 6.8 gal (26 L). Dispensing of multi-fold or C-fold paper towels does not require an additional adapter.

Paper towels are manually withdrawn through dispensing slot and feed properly until depleted. Unit will continue to feed towels properly when correctly reloaded with a partial load in place. User activates dryer by placing hands in the sensor zone indicated by graphic on door. Drying time is automatically initiated as long as movement is sensed up to a maximum of two (2) minutes to prevent accidental hold-on. Dryer automatically shuts off after time-out when hands are removed from the sensor zone. Refill dispenser by unlocking door and replacing towels for an empty or partially empty unit. Dispenser supply is replenished and waste container is emptied manually. Locking full-face door over compartments prevents unauthorized access or removal. Full cover and spring-hinge flap door on WR prevents unsightly overloads.

Technical Data Sheet

Product Specifications

68.9-74.3 dB-A @ 2M

Overall Dimensions:
15-3/8″ x 55-3/8″ x 7-1/2″ (391 x 1407 x 191 mm)

Wall Opening:
14-3/32″ x 54-3/8″ x 7-1/4″ (358 x 1381 x 184 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
