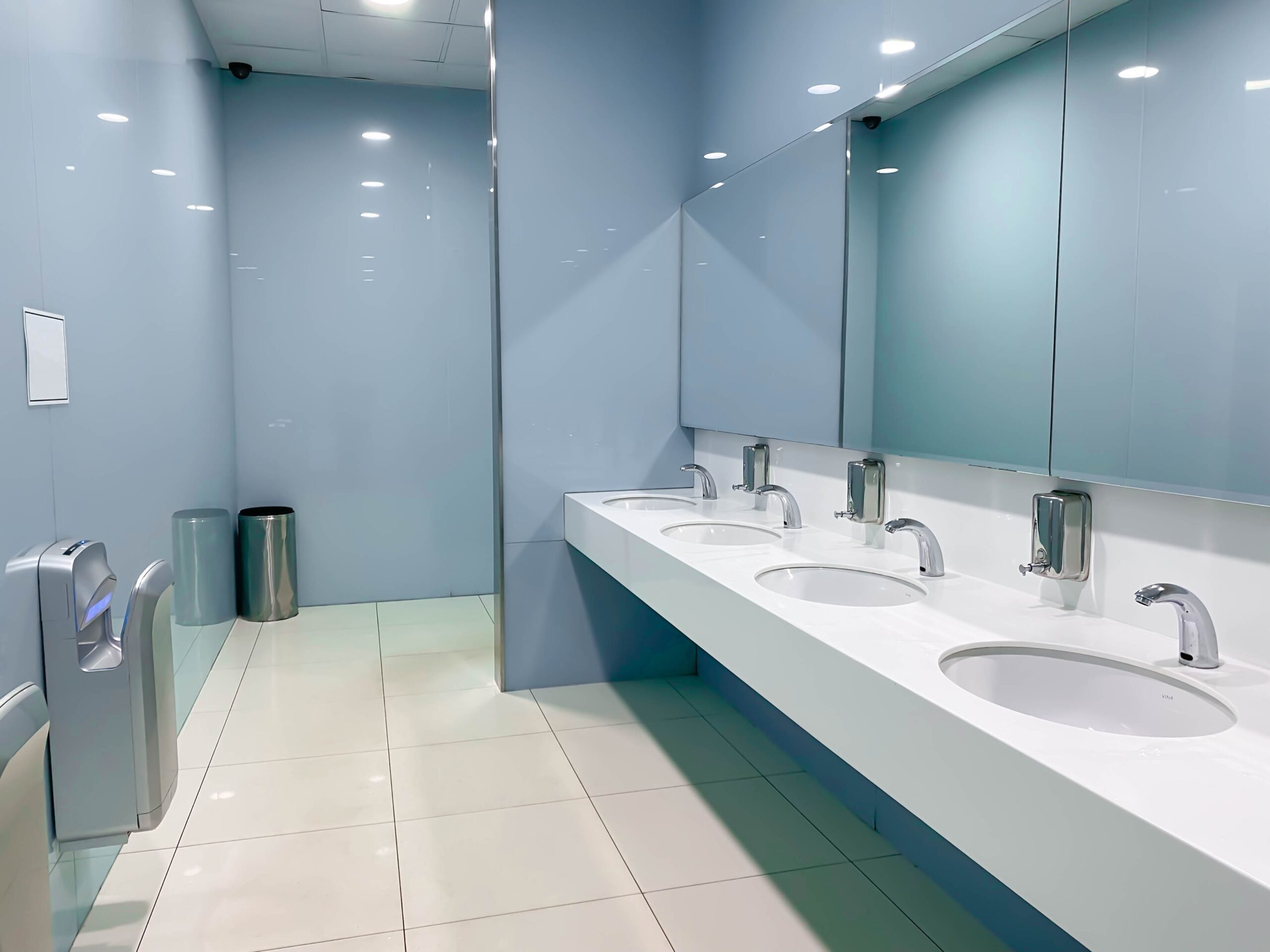

ADA Bathroom Sink Layout Space and Reach

Specific ADA bathroom sink layout guidelines were created so bathroom sinks are accessible and usable by individuals with disabilities. But what do these regulations specifically focus on?

Height, clearance, and reach are all part of the equation to accommodate the needs of wheelchair users and individuals with mobility limitations. The maximum height for an Americans with Disabilities Act-compliant bathroom sink is 34 inches, measured from the finished floor to the top of the sink rim or countertop. This height is intended to be reachable by everyone.

In front of the sink, a clear floor space of at least 30 inches wide by 48 inches deep must be provided. Unobstructed space provides sufficient room for maneuvering.

The knee and toe space beneath the sink must also be considered in relation to the required reach to faucet controls and other operable parts. A minimum knee clearance of 27 inches high, 30 inches wide, and 11 inches deep is usually required. A toe clearance of at least 9 inches high and 6 inches deep must be provided.

Knee and toe space should remain free of any obstructions, including pipes or structural supports. To prevent injuries, exposed plumbing under the sink should be properly insulated or configured.

The accessibility of a sink’s faucet is another compliance factor. Faucets must be operable with one hand and should not require tight grasping, pinching, or twisting of the wrist. Moreover, the force required to operate the faucet should be less than 5 pounds, and the controls should be positioned within easy reach, generally no more than 20 inches from the front edge of the sink.

“Make sure you’re up to date on ADA code requirements, ADA compliance, and ADA guidelines so you don’t face liability issues later,” states an article in Buildings.

The Ripple Effect of an ADA Bathroom Sink Layout

While grab bars are associated with toilet and shower areas, their placement can offer additional support in direct relation to your ADA bathroom sink layout. Grab bars should be positioned in a manner that allows for unobstructed use of the sink. Consider the placement of any grab bar in proximity to other fixtures commonly used near your restroom’s sink, such as toilet paper dispensers and hand dryers.

Mirror height is also important. For mirrors located above a sink, the bottom edge of the reflecting surface must be no more than 40 inches above the finished floor. If a mirror is not positioned above a sink or countertop, the maximum height for the bottom edge is reduced to 35 inches.

Accessories such as soap and paper towel dispensers should have a clear floor space of 30 inches by 48 inches, and mounted between 40 and 48 inches above the finished floor. Toilet paper dispensers should be mounted below any adjacent grab bars at a minimum height of 19 inches and positioned horizontally to be easily reachable from the toilet seat. Similarly, coat hooks and shelves should be installed no higher than 48 inches above the floor, with a clear floor space of 30 inches by 48 inches.

The interconnectedness of these regulations highlights the need for a comprehensive design approach to a sink layout designs, where each fixture’s placement is considered in relation to others. Specific height requirements for mirrors and accessories in your organization or company’s restroom demonstrate a clear understanding of the reach limitations experienced by individuals who use wheelchairs.

As you can see, ADA compliance in bathroom design extends far beyond the sink itself, yet is still closely connected to other placements in the restroom. Positioning your sink must be carefully considered in relation to toilets, grab bars, mirrors, and dispensers.

Exact Measurements Versus Common Oversights

Even slight deviations in your ADA bathroom sink layout from today’s regulatory specifications can result in non-compliance and hinder accessibility. While not a strict clearance, the sink basin depth should be in focus by any business or facilities manager to ensure comfortable reach to the faucet and controls.

Several common measurement pitfalls can lead to non-compliant sink installations. One frequent error is not accounting for the thickness of the countertop when measuring the overall sink height from the floor. This can result in the sink being installed higher than the maximum allowed 34 inches.

Another common oversight is failing to make sure that anybody’s knee and toe clearance space remains entirely free of obstructions, such as pipes, drain assemblies, or cabinet supports. Incorrectly measuring the clear floor space in front of the sink, particularly in relation to other bathroom fixtures or the swing of the door, is yet another issue. Don’t overlook insulating and protecting any exposed plumbing under the sink to prevent accidental contact or injuries.

The precision of these measurements underscores their importance in creating truly accessible bathroom facilities. Even seemingly minor deviations can impact the usability of a sink for individuals with disabilities.

One more note: When it comes to under-sink shelves and cabinets, business owners and facilities managers can also take tips from residential bathroom designers. “Remove the cabinet door under the sink,” states a how-to report in Care. “If you’re unable to install a wheelchair-friendly sink vanity, consider removing the bottom cabinet door. This allows the wheelchair user’s legs to fit under the sink to better reach the flow of water.”

Form, Function, and Type of ADA Bathroom Sink Layout

A variety of ADA bathroom sink layout styles can be incorporated into compliant bathroom designs, offering flexibility in aesthetics while meeting today’s standards. The key to compliance lies in making sure any sink and its installation adhere to the specific dimensional and clearance requirements.

Wall-mounted, undermount, drop-in, vessel, farmhouse, and even some pedestal sinks can be compliant with proper installation and adherence to height and clearance requirements. Maximizing clear floor space and unobstructed pathways to sinks are the most important aspect of following the rules, especially in multi-user restrooms where at least one sink must be ADA compliant. For small spaces, wall-mounted, corner, floating vanities, and shallower basins offer accessible solutions:

Sink Type

Key ADA Compliance Considerations

Space-Saving Notes

Wall-mounted

Unobstructed knee/toe clearance.

Excellent for maximizing under-sink space.

Undermount

Countertop height, knee/toe clearance.

Requires compliant countertop installation.

Drop-in

Countertop and under-sink space compliance.

Relies on proper surrounding installation.

Vessel

Overall height (max 34 inches), knee clearance.

Height is a critical factor.

Pedestal

Specific models with adequate knee clearance.

Standard models often don’t comply.

Farmhouse

Installation height, under-sink clearance.

Needs proper height and clearance.

Corner sinks

clear floor space, proper mounting.

efficient use of small space.

Floating vanities

open space below the sink.

provides a contemporary look, and proper clearance.

shallow sink basin

maximising knee clearance.

Helpful in small space.

The Cost of Non-Compliance: Understanding Penalties

Failure to adhere to ADA bathroom sink layout regulations can result in significant financial penalties and legal repercussions. At the federal level, businesses and organizations in violation of the ADA can face substantial fines.

For a first offense, penalties can range up to $75,000. For subsequent violations, the financial penalties can increase to as much as $150,000.

Beyond these direct fines, non-compliance can also lead to costly lawsuits filed by individuals with disabilities who have experienced discrimination due to inaccessible facilities. The U.S. Department of Justice (DOJ) is responsible for enforcing the ADA and can initiate its own lawsuits against entities failing to meet required accessibility standards.

Some state and local jurisdictions may also have their own rules and penalties for non-compliance. Local penalties can accumulate rapidly, particularly for businesses with multiple non-compliant restrooms.

The implications of ADA non-compliance extend beyond financial and legal considerations. Inaccessible facilities create significant barriers for individuals with disabilities, limiting their ability to participate fully and independently in public life. This not only has a negative impact on individuals but can also damage a company’s reputation and reflect a lack of commitment to equal access.

What’s more is: the cost of retrofitting a non-compliant bathroom to meet ADA standards can be substantial, often ranging from several thousand to tens of thousands of dollars, depending on the extent of necessary modifications. The potential for significant financial penalties, legal action, damage to your organization’s reputation, and the expense of retrofitting underscores the importance of prioritizing ADA compliance in all aspects of bathroom sink layout, additional design, and maintenance.

Proactive compliance is not only a legal and ethical obligation but also a sound business strategy. It can prevent significant costs and negative consequences in the long run.

Public Trends in ADA Bathroom Sink Layout Designs

Contemporary approaches to designing ADA bathroom sink layout spaces are increasingly focused on bringing together accessibility features with modern design. Creating welcoming and functional spaces that cater to the needs of all users without sacrificing visual appeal is the name of this game.

There’s been a growing preference for sleek, minimalist wall-mounted sinks. These sinks not only provide the essential unobstructed knee and toe clearance required for wheelchair accessibility but also contribute to a more open and contemporary bathroom design.

The use of stylish, high-contrast grab bars that are integrated into the overall design, rather than appearing as purely institutional elements, is also becoming more common. Designers are also increasingly opting for matching finishes across all bathroom fixtures to achieve a cohesive look.

Additionally, touchless or motion-activated faucets and hand dryers are becoming popular for their improved hygiene and ease of use.

“There are two main types of touchless faucets,” according to Family Handyman. “Voice activated faucets turn on and off with voice commands, much like other smart home devices such as Amazon’s Alexa. Other hands-free faucets use infrared sensors to detect a particular depth of field and only activate on entry and exit to this field. Some smart faucets are activated by touch. These use capacitance, your body’s natural current.”

In compact bathrooms, designers are exploring diagonal placement of fixtures as a way to maximize usable space. Multi-functional grab bars that also serve as shelving or towel holders represent another innovative approach to optimizing space.

Overall, sink layouts are being designed to allow for better cleaning and maintenance access. Current trends in public bathroom and layout designs reflect a move toward creating improved spaces that are not only compliant with ADA regulations but also pleasing to the eye.

American Specialties, Inc.

American Specialties, Inc. (ASI) develops your ADA bathroom sink layout concepts by taking functionality and user experience to the next level. For customers who demand innovative products, ASI offers a complete collection of commercial and office washroom equipment.

Additionally, ASI Group designs, engineers, and manufactures from a single source. This includes fully integrated washroom accessories, partitions, lockers, and visual display products. It’s just the beginning of what ASI has to offer.

By incorporating must-have accessories, you can create a commercial restroom that is both stylish and functional.
