0393-(n)

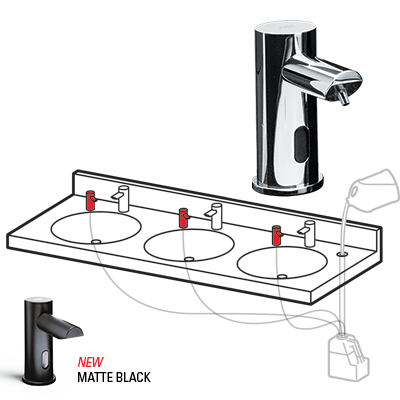

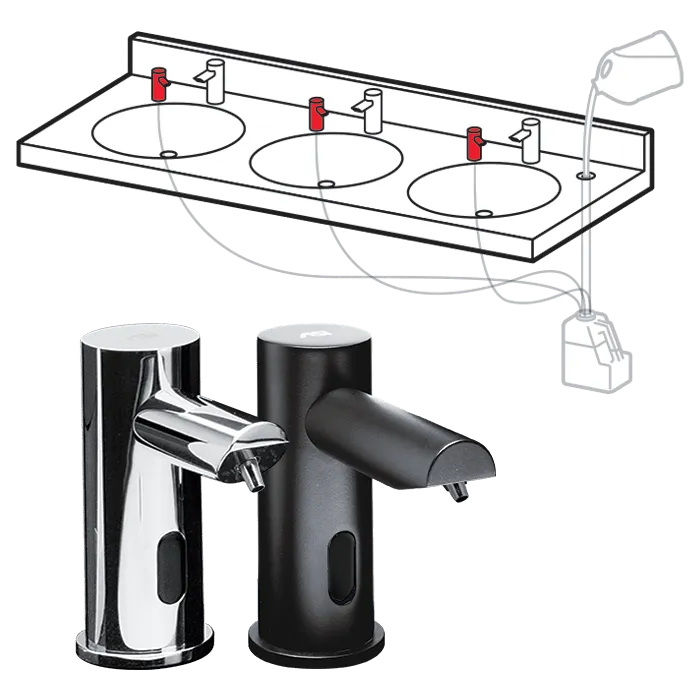

EZ FILL™ TOP FILL, MULTI-FEED Foam SOAP DISPENSER HEADS
Constructed of chrome plated spout and battery or AC power operated, hands-free sensor housing with a highly polished finish over all surfaces. LED indicates function and battery condition on face front. Foam soap supply shall be from EZ Fill™ Vanity Mounted Top Fill Port and Multi-Feed Tank (supplied separately). Electrically operated using batteries or alternating current.
For Matte Black finish, use suffix -41
Multi-Feed Dispenser Heads do not include a Multi-Feed Kit
Model Options available, choose appropriate suffix:
- 0393-1A – EZ Fill™ – Top Fill, MULTI-FEED FOAM SOAP Dispenser Head – Battery Operated (6 D Cell – not included)
- 0393-1AC – EZ Fill™ – Top Fill, MULTI-FEED FOAM SOAP Dispenser Head – AC Plug in Version
- 0393-6-1A – EZ Fill™ – Top Fill, MULTI-FEED FOAM SOAP Dispenser Head – Battery Operated (6 D Cell – not included) – 6 Pack SKU (comes with Remote Control)
- 0393-6-1AC – EZ Fill™ – Top Fill, MULTI-FEED FOAM SOAP Dispenser Head – AC Plug in Version – 6 Pack SKU (comes with Remote Control)
- 0394-(N) – Individual, Stand-Alone dispensers
- Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
- Viscosity Range (mPa·s or cP): 1 – 100
- pH Range: 5.5 ~ 8.5
A complete Dispensing Chart and other relevant technical documents are available for all dispensers.
Product Specifications
- Top fill, expandable system
- Heavy-duty brass dispensers with chrome plated or matte black finish
- Counter-mounted port has an anti-theft cover
- Easy to use
- This EZ Fill™ system is electrically operated using batteries or alternating current
- Anti-Rotation Flange
Features
Multi-Feed
System
Using infrared sensors, each of up to 6 automatic soap dispensers is fed by its own controllable peristaltic pump.
Easy
Refill
Using a single soap reservoir, this top-fill system allows refill of up to 6 soap dispensers with 1 pour—for easy ongoing maintenance.
Universal
Remote
Controls all dispensers with one remote, allowing flexibility in settings with a choice of 4 presets.
Ranges Of Sizes
For All Needs
Holds 6 L of liquid soap to supply up to six (6) individual EZ FILL™ vanity mounted automatic soap dispenser units.
Complementary Products
Delivering Exactly What You Need—Where You Need It.
ASI GROUP
Palm
American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
