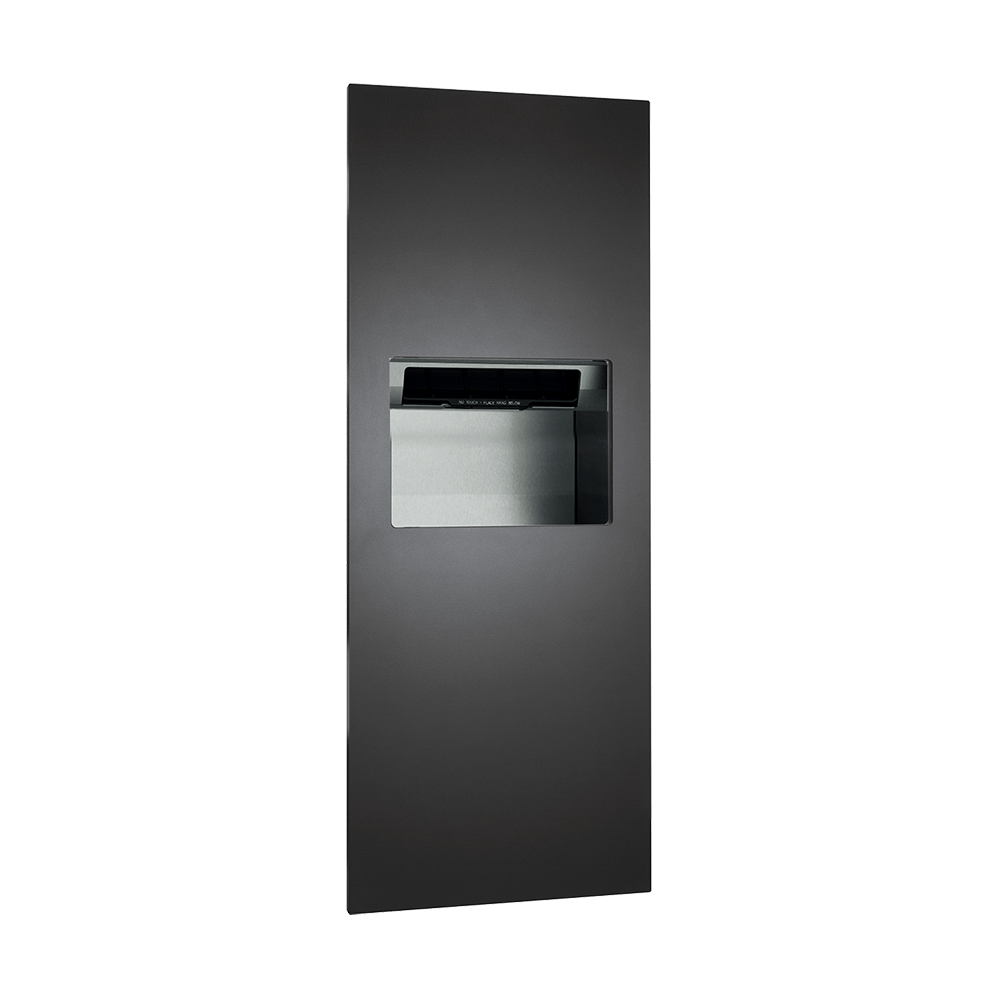

PIATTO™ COMPLETELY RECESSED AUTOMATIC ROLL PAPER TOWEL DISPENSER AND WASTE RECEPTACLE – AC Power – Matte Black Phenolic Door
This sophisticated automatic paper towel dispenser and waste receptacle is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.
Proximity sensing no-touch unit holds and dispenses one 8″ diameter [Ø203] x 8″ wide  standard towel roll up to 800 ft. (244m) long and one 8″ wide  stub roll up to 4″ diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Dispenser is powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.
Waste receptacle has a capacity of 9.9 gallons (37.3 L) and is emptied manually.
The Piatto™ collection is designed to be coplanar to the wall - an ASI exclusive.
A New Choice
Phenolic doors in matte black or white were created to accentuate your washroom design.
3-way, adjustable hinges allow flexibility in the field and are concealed along with all other hardware.
By Blending In
A combination of technology and design ensures a perfect fit adding to your design by not detracting from it.
Delivering Exactly What You Need—Where You Need It.
Contact a representative
All fields are requies.
You have succesfully added a product to your Architect's Resource Builder!
American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
