0198-MH

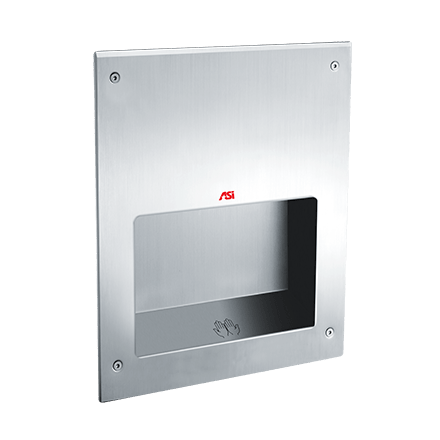

SAFE-DRI™ MENTAL HEALTH HIGH-SPEED HAND DRYER
Anti-ligature dryer designed for Behavioral Health environments—angled top, welded corners and single tube exhaust prevent looping, tying off, wedging and prying. Tamper-resistant 18 gauge stainless steel cover, and flush pin-hex security screws.
Optional voltages available:
- 0198-MH-1 (115-120V)
- 0198-MH-2 (208-240V)
Features
Stainless Steel Construction
Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.
Features
• Quick drying — less than 15 seconds
• Operates automatically using infrared sensor
• Auto-resetting thermostat
• 60-second automatic shut off
• Cover fabricated of heavy-duty, one-piece-formed stainless steel
• ADA compliant
• 5 year parts warranty
Electric
Motor: 2/3 HP, 29 krpm, Brush type, dual ball bearings
- 0198-MH-1: 115-120VAC, 50/60 Hz. 0.84-1.0 kW
- 0198-MH-2: 208-240VAC, 50/60 Hz. 0.84-1.0 kW
Air Output: 68 CFM (102 m³/h) – Heat Temp: 131° F ± 5 @ 77° F (55° C ± 2.8 @ 25°C) ambient room temp.
Output Air Speed: 201 mph (230 ft/s) [90 m/s {324 km/h}]
Heater: 500 Watts
Current: 10.4 Amps @ 120 VAC; 5.2 Amps @ 240 VAC
Dry Time: Under 15 seconds
Decibel Level
66 dB-A @ 2M
Dimensions
Overall Dimensions:
12-5/8″ x 15-3/4″ x 5-4/16″ (320 x 400 x 140 mm)
Wall Opening:
11-7/8″ x 14-3/4″ x 5-1/8″ (303 x 376 x 130 mm)
