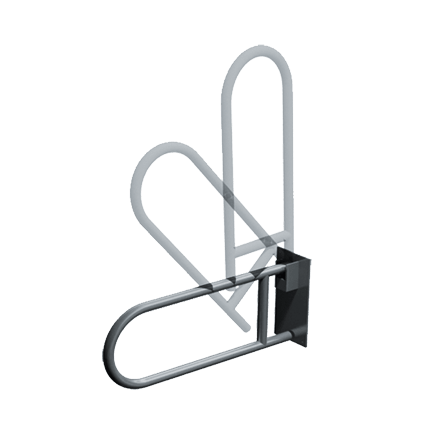

Swing-Up Grab Bar


Swing-Up Grab Bar is fabricated of stainless steel type 304 alloy 18-8 with a Satin finish. The bar has 1-1/2” diameter (Ø38) wall tubing hinge riding on solid bar axle with twin torsion-spring counter balance. Vertical position gravity lock with manual release provided. Tamper resistant screw provided to allow owner to lock bar in vertical position. Operable with one hand. Grab bar tube will have a plastic end cap to cushion contact with wall plate in use position.

Exposed Flange (1-1/2″ O.D) Smooth –  Swing Up Grab Bar

Product Specifications

Overall Size:
12″ H x 4″ W x 29″ D (305 x 102 x 737 mm)
