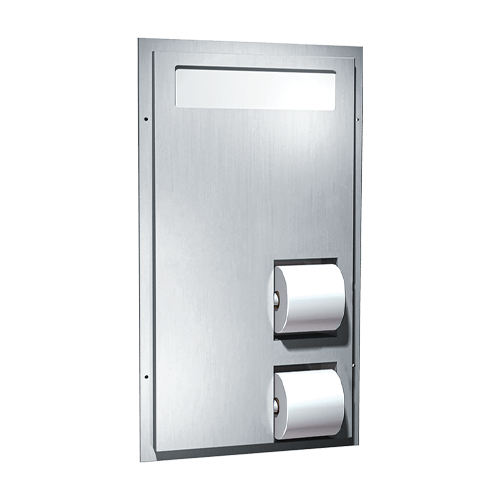

Toilet Seat Cover & Toilet Tissue Dispenser, Dual Access for Handicapped – Partition Mounted, Reverse

Toilet tissue dispenser on opposite sides from 0484-HC.

Holds and dispenses 1000 standard single or half-fold paper toilet seat covers contained in supply box and four (4) standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper rolls.

One side mounts flush to partition of barrier-free side to allow for grab bar. Usable both sides but serviced from one side. Access door is opposite HC stall. Internal baffles prevent line of sight view from either side through unit at any time.

Cabinet door is held closed with two (2) tumbler locks. Cabinet includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] (supplied).

Technical Data Sheet

Product Specifications

Overall Dimensions:
17-3/8″ x 30-5/8″ x 4-1/2″ (441 x 778 x 114 mm)
Partition Opening:
15-1/2″ x 28-7/8″ x 1/2″ to 3-3/4″
(394 x 733 x 13 to 95 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
