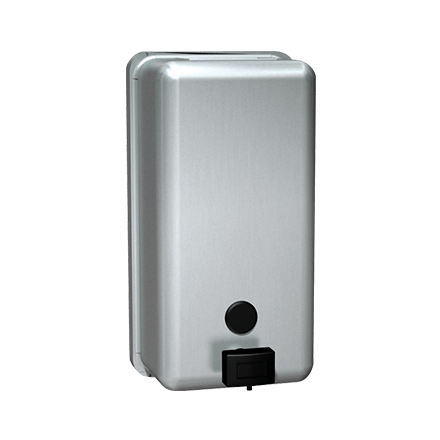

Liquid Soap Dispenser – Vertical – Surface Mounted

40 fl. oz. (1.2 L) capacity liquid soap dispenser in stainless steel with satin finish comes with an all purpose valve and a tamper-resistant refill indicator.

Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open. Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manually.

  • Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
  • Viscosity Range (mPa·s or cP): 100 – 3.5k
  • pH Range: 5.5 ~ 8.5

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

Product Specifications

4-13/16” x 8-3/16” x 3-15/16” (122 x 208 x 100 mm)

Spout projection: 3⁄4″ (19 mm)

Stainless Steel

Stainless Steel

Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.
