645210AC-41

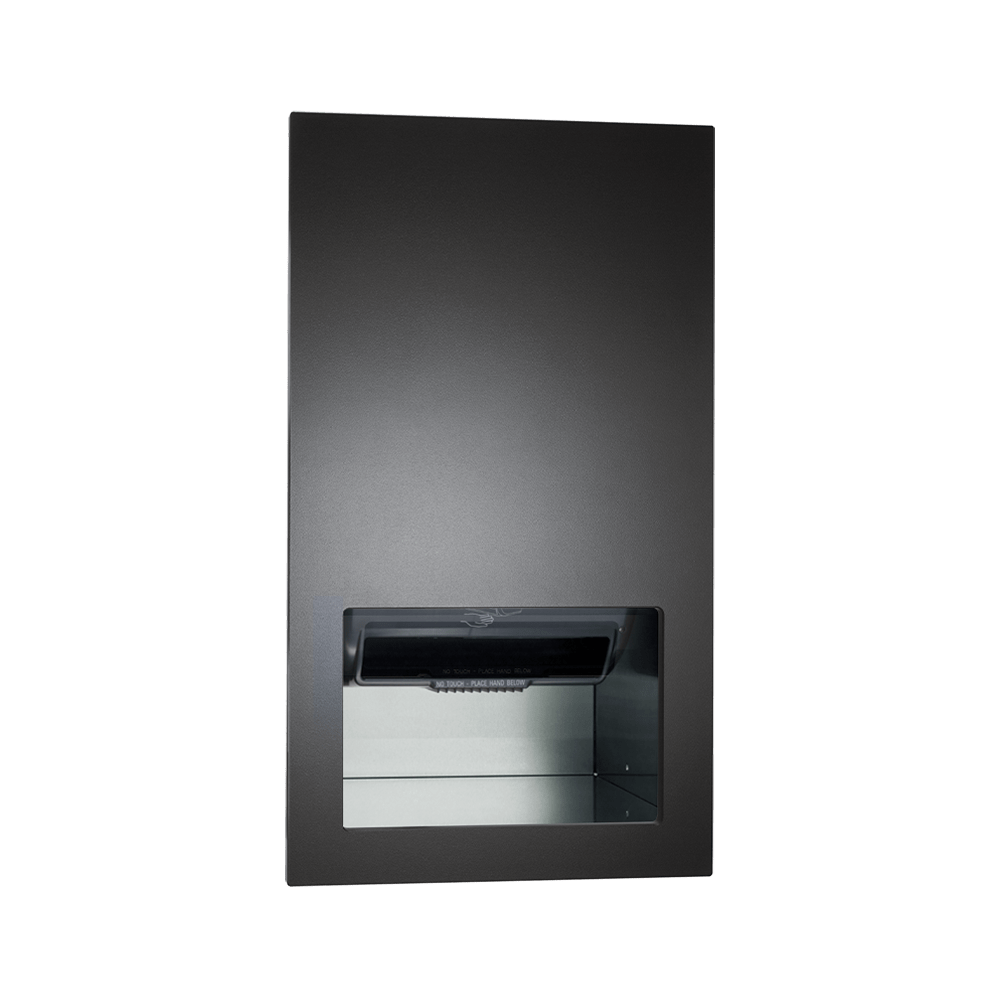

PIATTO™ COMPLETELY RECESSED AUTOMATIC ROLL PAPER TOWEL DISPENSER – AC Power – Matte Black Phenolic Door


This sophisticated automatic paper towel dispenser is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.

Proximity sensing no-touch unit holds and dispenses one 8″ diameter [Ø203] x 8″ wide [203] standard towel roll up to 800 ft. (244m) long and one 8″ wide [203] stub roll up to 4″ diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Dispenser is powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.

Finish Options: matte-black

Technical Data Sheet

Product Specifications

Finished Wall Opening (FWO):

16-1/8″ x 28-1/16″ x 10″ (410 x 713 x 254 mm) min

Unit Size:

16-1/16″ x 28″ x 9-13/16″ (408 x 711 x 248 mm)

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
