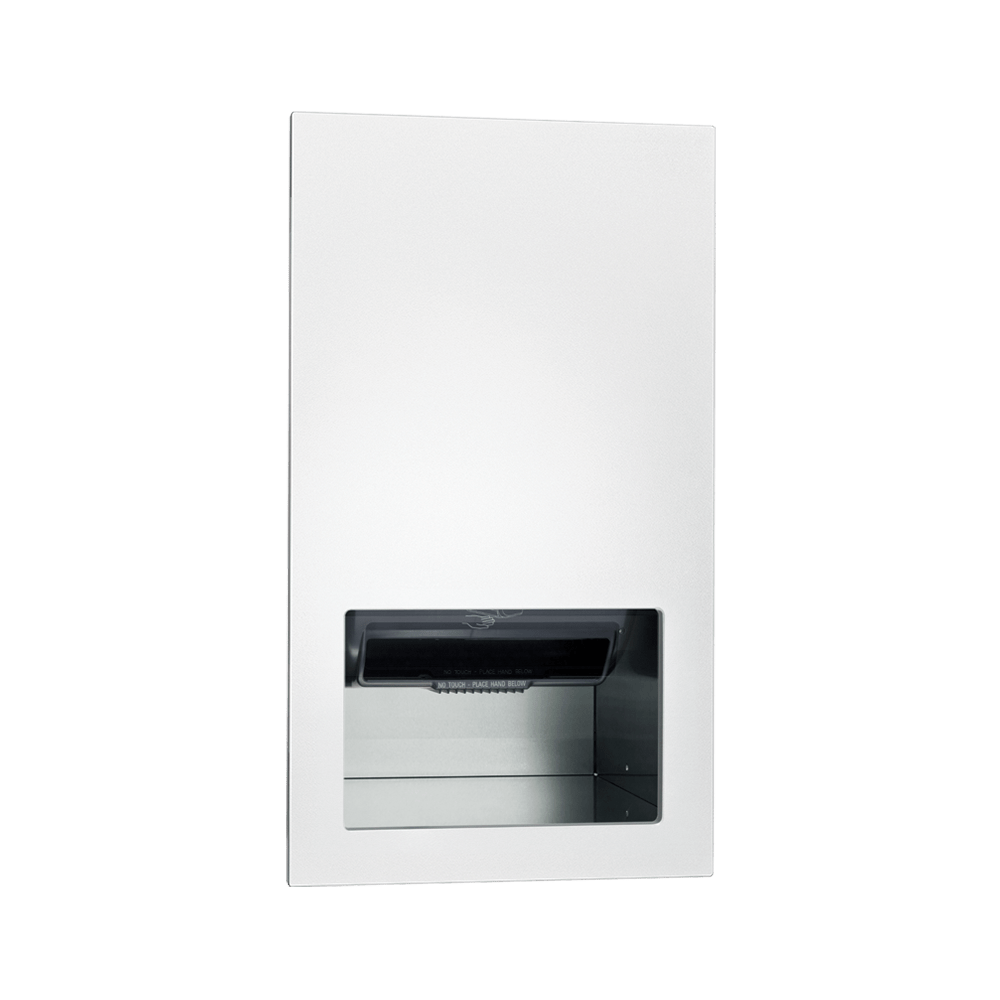

PIATTO™ COMPLETELY RECESSED AUTOMATIC ROLL PAPER TOWEL DISPENSER – AC Power – White Phenolic Door
This sophisticated automatic paper towel dispenser is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.
Proximity sensing no-touch unit holds and dispenses one 8″ diameter [Ø203] x 8″ wide  standard towel roll up to 800 ft. (244m) long and one 8″ wide  stub roll up to 4″ diameter [Ø102] and automatically changes over to main roll when finished with stub roll when feed tabs are properly engaged. Dispenser is powered by AC plug-in adapter – C-UL-US and CE approved internal low-voltage adapter (supplied) using 110- 240VAC, 50/60 Hz and providing output of 5VDC @ 1A and operates automatically to activate towel dispensing when hands are placed in sensor zone. At each activation unit feeds out a length of towel selected by owner by setting length, delay and paper saver switches.
Note: ASI Piatto™ products are made to order and are not returnable.
Finished Wall Opening (FWO):
16-1/8″ x 28-1/16″ x 10″ (410 x 713 x 254 mm) min
16-1/16″ x 28″ x 9-13/16″ (408 x 711 x 248 mm)
The Piatto™ collection is designed to be coplanar to the wall - an ASI exclusive.
A New Choice
Phenolic doors in matte black or white were created to accentuate your washroom design.
3-way, adjustable hinges allow flexibility in the field and are concealed along with all other hardware.
By Blending In
A combination of technology and design ensures a perfect fit adding to your design by not detracting from it.
Delivering Exactly What You Need—Where You Need It.
Contact a representative
You have succesfully added a product to your Architect's Resource Builder!
American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
