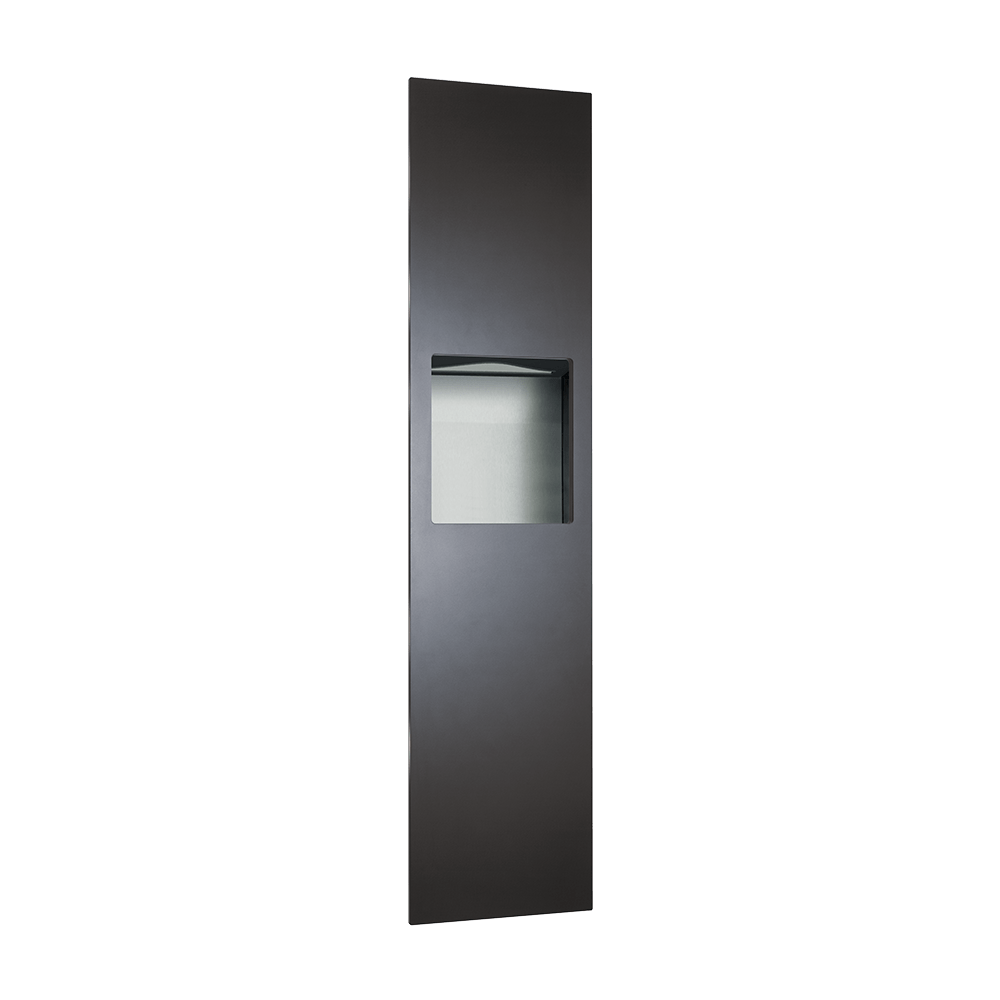

PIATTO™ COMPLETELY RECESSED PAPER TOWEL DISPENSER AND WASTE RECEPTACLE – Matte Black Phenolic Door
This sophisticated combination paper towel and waste receptacle cabinet is designed to be completely recessed into the plane of the washroom wall, highlighting the seamless design that defines Piatto™. The phenolic door is attached to the cabinet using field-adjustable, furniture quality hinges and is secured shut by an internal spring-loaded latch. All hardware is concealed giving the Piatto™ Collection its minimalist appeal.
Dispenses 600 C-fold or 800 multi-fold paper towels. Paper towels are manually withdrawn through dispensing slot. Unit will continue to feed properly when reloaded with a partial load in place. Refill dispenser by unlatching door and replacing towels for an empty or partially empty unit. 4.2 gal. (16 L) stainless steel waste receptacle has a rolled edge finger hole for easy servicing.
Note: ASI Piatto™ products are made to order and are not returnable.
Finished Wall Opening (FWO):
13-1/16″ x 55-1/16″ x 4-11/16″ (332 x 1399 x 119 mm) min
13″ x 55″ x 4-9/16″ (330 x 1397 x 116 mm)
The Piatto™ collection is designed to be coplanar to the wall - an ASI exclusive.
A New Choice
Phenolic doors in matte black or white were created to accentuate your washroom design.
3-way, adjustable hinges allow flexibility in the field and are concealed along with all other hardware.
By Blending In
A combination of technology and design ensures a perfect fit adding to your design by not detracting from it.
