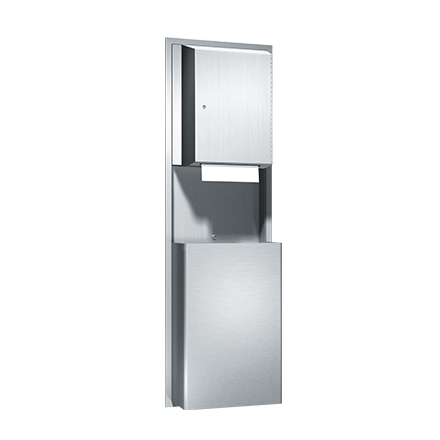

Traditional™ Roll Paper Towel Dispenser & Waste Receptacle Cabinet – Semi-Recessed

Holds one towel roll 8″ diameter (Ø203) x 8″ (203mm) wide and one stub roll 3″ diameter (Ø76) x 8″ (203mm) wide and dispenses single full width cut towel 12″ (305mm) long from pull-towel autocut dispenser.

Dispenser mechanism is supplied installed and automatically changes over from depleted stub roll to start new roll without interruption. Waste receptacle has a capacity of 1.83 cu ft (0.052 m³) or 13.5 gal (52 liters).

string(0) ""
Product Specifications

Overall Dimensions:
17-1/4″ x 56″ x 9-1/4″ (438 x 1422 x 235 mm)
Wall Opening:
15-3/4″ x 54-1/2″ x 4″ min. (400 x 1384 x 102 mm)
Stainless Steel

Stainless Steel

Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.



Our tumbler locks provide convenience and security with an elegant look.

Staked Piano

Staked Piano

Our heavy-duty, staked piano hinges provide security and a neat appearance, and they stand up to heavy use.

Safe Easy

Safe Easy

Towel dispensers have hemmed opening for safe, easy dispensing, minimizing waste and ensuring hygienic use.
