3514-P
Swing-Up Grab Bar – PEENED

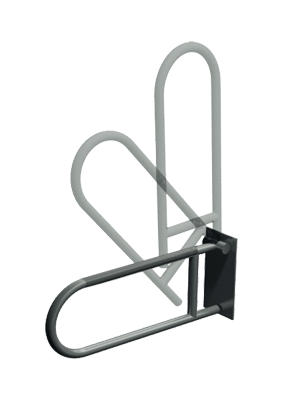

Swing-Up Grab Bar is fabricated of stainless steel type 304 alloy 18-8 with a Satin finish. The bar has 1-1/2” diameter (Ø38) tubing hinge with (3) preset detent stop positions (full up, 45 deg. raised and full down). A polymer bumper is provided at the bottom bar end to prevent banging when lowered into use position. Tension for bar movement is accomplished by internal detent stops pawl provided. Operable with one hand. Bar mounting plate includes solid stop bumper to prevent raised arm from banging into wall.
Exposed Flange (1-1/2″ O.D) Peened – Swing Up Grab Bar
Product Specifications
Overall Size
11 13/16″ H x 3 15/16″ W x 30″ D (300 x 100 x 762)
