0135-1

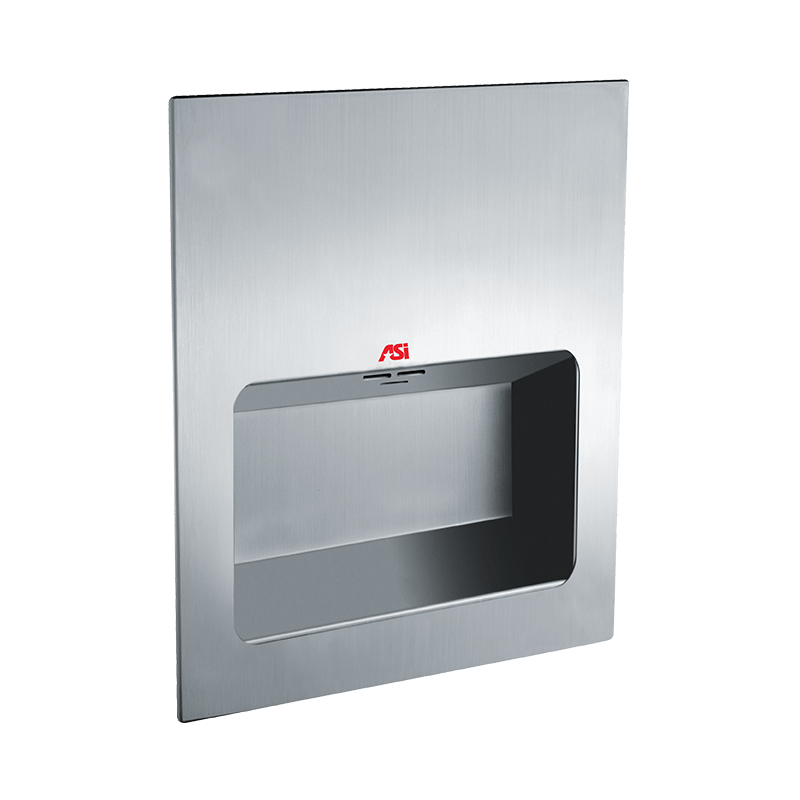

TURBO-TUFF™ Recess mounted HIGH-SPEED ADA Hand Dryer (110-120V)
Fast drying, less than 15 seconds, and automatic operation using infrared sensor with auto-resetting thermostat. Owner- adjustable air speed & temperature and on/off heating options with shut off when user removes hands from sensor zone. Satin Stainless Steel finish.
Optional voltages available:
- 0135-2 (208-240V)
- 0135-3 (277V)
Product Specifications
• High Speed <15 Sec. DryTime – ADA Compliant
• 68.9 dB-A (Min) / 74.3 dB-A (Max)
• Heavy Duty – 18 Gauge Face -Type 304 Stainless Steel – Satin Finish
• Fully Recessed – “Touch Free” Operation
• Automatic – AC – Choice 110-120V / 208/-240V / 277V – “NoTouch”
• Owner Adjustable Air Speed AND Heat (with On-Off switch)
• Approved Under the re-examination services of Underwriters Laboratories, Inc.
Motor: 2/3 HP, 16-29 krpm, Brush type, dual ball bearings
- 0135-1: 110-120 VAC – 50/60 Hz – 10.4 A (Max.) – 1000W
- 0135-2: 208-240 VAC – 50/60 Hz – 5.2 A (Max.) – 1000W
- 0135-3: 277 VAC – 60 Hz – 5.2 A (Max.) – 1000W
Air Output: 42-60 CFM (71-102 m³/h) – Heat Temp: 131° F ± 5 @ 77° F (55° C ± 2.8 @ 25°C) ambient room temp.
Dry Time: Under 15 seconds
68.9-74.3 dB-A @ 2M
Overall Dimensions:
12-19/32″ x 15-3/4″ x 4-1/32″ (320 x 400 x 102 mm)
Wall Opening:
12-5/16″ x 15-3/16″ x 3-7/8″ (313 x 386 x 98 mm)
Features
Stainless Steel
Construction
Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.
