0390-(n)

EZ FILL™ Top-Fill, Multi-Feed Liquid Soap Dispenser Heads

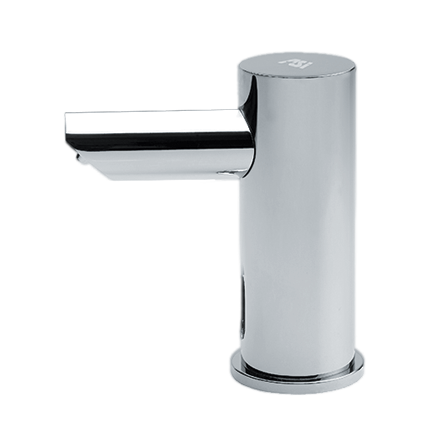

Constructed of chrome plated spout and battery or AC power operated, hands-free sensor housing with a highly polished finish over all surfaces. LED indicates function and battery condition on face front. Soap supply shall be from EZ Fill™ Vanity Mounted Top-Fill Port and Multi-Feed Tank (supplied separately).

For Matte Black finish, use suffix -41

Multi-Feed Dispenser Heads do not include a Multi-Feed Kit

Model Options available, choose appropriate suffix:

  • 0390-1A – EZ Fill™ – Top Fill, MULTI-FEED LIQUID SOAP Dispenser Head – Battery Operated (6 D Cell – not included)
  • 0390-1AC – EZ Fill™ – Top Fill, MULTI-FEED LIQUID SOAP Dispenser Head – AC Plug in Version
  • 0390-6-1A – EZ Fill™ – Top Fill, MULTI-FEED LIQUID SOAP Dispenser Head – Battery Operated (6 D Cell – not included) – 6 Pack SKU (comes with Remote Control)
  • 0390-6-1AC – EZ Fill™ – Top Fill, MULTI-FEED LIQUID SOAP Dispenser Head – AC Plug in Version – 6 Pack SKU (comes with Remote Control)
  • 0391-(N) – Individual, Stand-Alone dispensers
  • Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
  • Viscosity Range (mPa·s or cP): 100 – 3.8k
  • pH Range: 5.5 ~ 8.5

A complete Dispensing Chart and other relevant technical documents are available for all dispensers.

EZ Fill™ Tested Soaps

Product Specifications

  • Top-fill, expandable system
  • Heavy-duty brass dispensers with chrome plated or matte black finish
  • Counter-mounted port has an anti-theft cover
  • Easy to use
  • This EZ Fill™ system is electrically operated using batteries or alternating current
  • Anti-Rotation Flange
Features
Multi-Feed

Multi-Feed
System

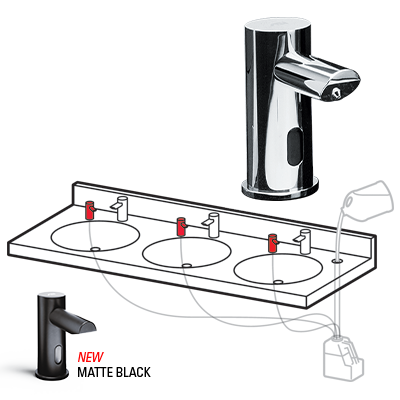

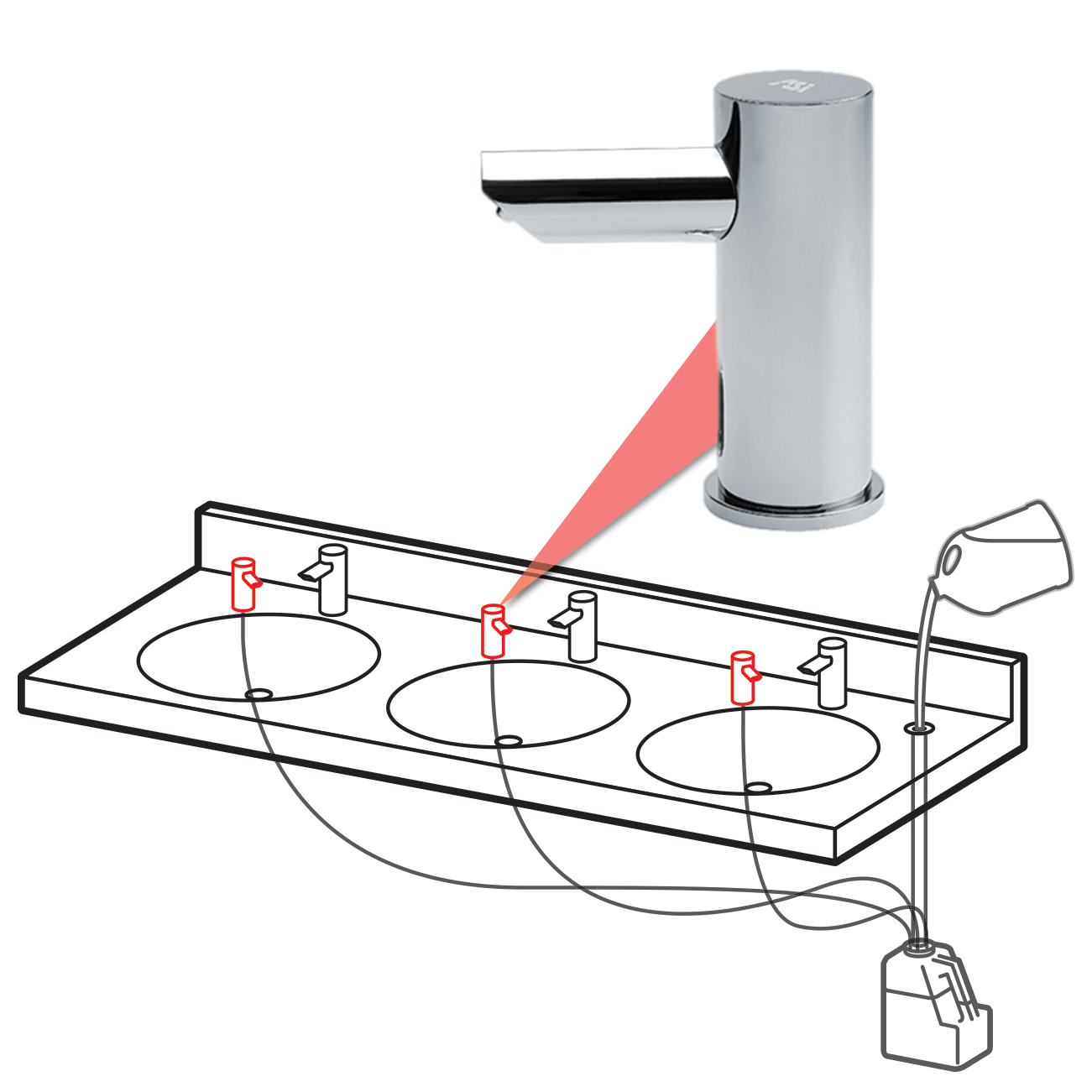

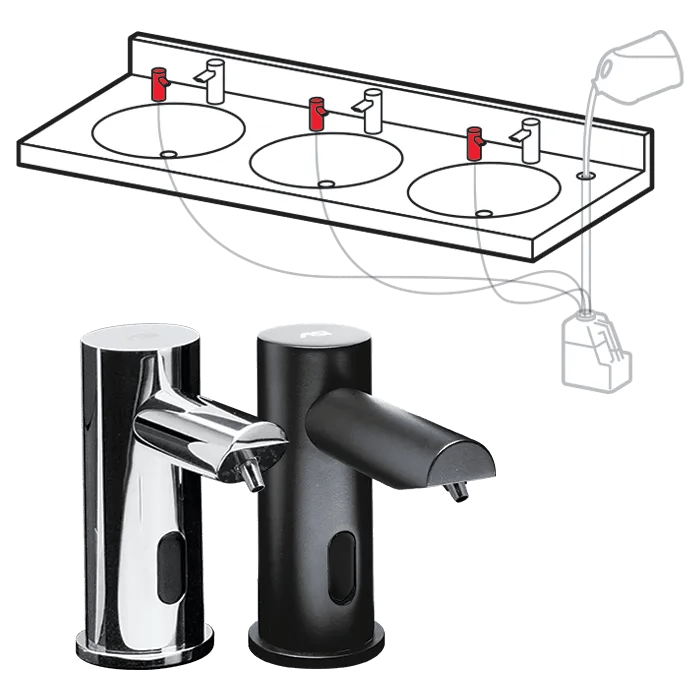

Using infrared sensors, each of up to 6 automatic soap dispensers is fed by its own controllable peristaltic pump.

Easy

Easy
Refill

Using a single soap reservoir, this top-fill system allows refill of up to 6 soap dispensers with 1 pour—for easy ongoing maintenance.

Universal

Universal
Remote

Controls all dispensers with one remote, allowing flexibility in settings with a choice of 4 presets.

Ranges Of Sizes

Ranges Of Sizes
For All Needs

Holds 6 L of liquid soap to supply up to six (6) individual EZ FILL™ vanity mounted automatic soap dispenser units.

Delivering Exactly What You Need—Where You Need It.
See Global Reach

American Specialties, Inc. reserves the right to make design changes or to withdraw any design without notice.
