7402-HSSM

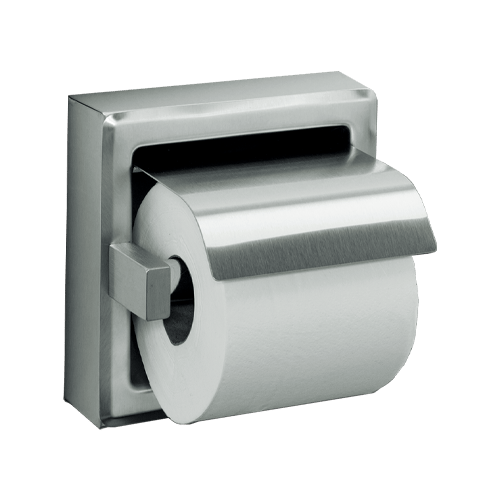

Toilet Tissue Holder with Hood (Single) – Surface Mounted, Satin
Satin Finish. Includes Hood. Surface Mounted Toilet Paper Holder holds and dispenses all standard core roll tissue up to 6’’ diameter (Ø152) roll. Fabricated of stainless steel type 304 alloy 18-8. Roller is chrome plated high impact resistant ABS plastic and spring-loaded.
Select product with options from Model Options drop-down, below:
- Optional finish must be specified as satin. Specify finish by adding code suffixes to model number (i.e. 7402-HSSM).
- -S: Satin Finish
- For theft-resistant spindle, add R-009 after model number.
Product Specifications
INSTALLATION
For Standard Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill two (2) 7/32″ diameter (Ø5.6) clearance holes through tile and/or wallboard only. Use two (2) No 10 stainless steel Philips flat or oval head self-tapping or wood screws (by others) of suitable length to penetrate blocking in wall by approximately 1/2″ (13). Tighten screws to hold unit tight against finished wall face.
Optional Method for Dry Wall Mounting: Locate unit and transfer hole positions to wall. Drill two (2) holes appropriate for expansion anchors into masonry substrate. Tap proper expansion anchors (provided by others to suit wall conditions) into wall to be flush with wall face. Use two (2) stainless steel Philips flat or oval head No 10AB self-tapping screws (provided by others to suit wall conditions) through dimpled holes at back of shell. Tighten screws to hold unit tight against finished wall face.
For compliance with ADA Accessibility Guidelines install unit with centerline of roller 19″ (483) min AFF to 42″ (1067) max AFF and 7″ (178) min to 9″ (229) max from front of commode to centerline of dispenser.
Overall Dimensions:
6-5/16″ x 6-5/16″ (160 x 160 mm)
Features
Stainless Steel
Construction
Our heavy-duty items are made of high-quality 304 stainless steel, which is tough, durable, stain-resistant and easy to clean.
Safe Easy
Dispensing
Dispensing and storage options vary, from single roll to multiple rolls or jumbo roll dispensers.
